Introduction
Since the introduction of wireless charging in the iPhone 8 in 2017, Apple has incorporated this feature across all its iPhone models. Traditional wireless charging relies on the alignment of transmitting and receiving coils, which often results in suboptimal charging efficiency if the placement is not precise. This can lead to decreased charging efficiency, slower charging, and excessive heat generation, hindering the development and user experience of wireless charging technology.
To address these issues, Apple introduced the innovative MagSafe magnetic charging technology with the iPhone 12 series. This technology incorporates MagSafe magnetic components in the iPhone, accessories, and chargers to achieve automatic alignment and improve wireless charging efficiency.
How MagSafe Works
As you can see from the picture above, the MagSafe system features a unique coiled wire design capable of handling increased power reception, capturing magnetic flux through a nanocrystal panel and utilizing an enhanced shielding layer for safer fast wireless charging. Surrounding the wireless receiving coil is a densely packed array of magnets, which aligns and attaches automatically to MagSafe accessories, boosting wireless reception efficiency. The system includes a highly sensitive magnetometer that reacts to changes in magnetic field strength, enabling the iPhone to quickly recognize MagSafe accessories and prepare for wireless charging.
The MagSafe magnetic charging technology represents a significant departure from traditional wireless charging methods. Its design features a flat, circular metal casing with an integrated power cable, making it compact and easy to carry. When an iPhone 12 is placed on the MagSafe charger, the charger’s powerful magnets snap into place with an audible click, automatically aligning with the magnetic ring on the phone for a secure attachment. This automatic alignment allows the transmitting and receiving coils to achieve a level of precision unattainable with manual placement, leading to efficient high-power charging.
The wireless charging system’s convenience is further enhanced by its “drop-and-charge” capability, eliminating the need for precise manual alignment thanks to Apple’s magnetic attraction technology. This ensures optimal charging efficiency by preventing misalignment, which has allowed Apple to increase the wireless charging capability of the iPhone 12 from 7.5W to 15W. This doubling of power significantly speeds up the charging process, reducing the wait time for users.
MagSafe’s easy magnetic attachment not only improves the charging experience but also opens up new possibilities for accessory development. By supporting the Qi wireless charging standard, it enables third-party manufacturers to develop 7.5W Qi standard magnetic wireless chargers and other accessories, broadening the ecosystem. This compatibility with the Qi standard means that users can enjoy a wide range of magnetic wireless charging options and accessories, enhancing the versatility and convenience of their devices.
Permanent Magnets in Qi Wireless Chargers

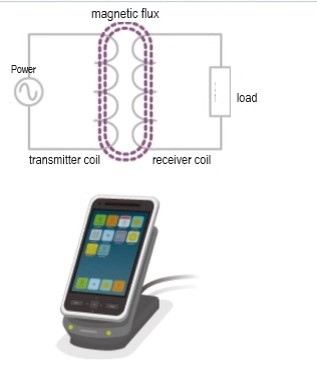

The Qi wireless charging standard operates on the principle of electromagnetic induction. The basic principle of the inductively coupled power transmission system is shown in the following figure. This system consists of a transmitter coil and a receiver coil, forming an electromagnetic coupling inductor.
The alternating current carried by the transmitter coil generates a magnetic field, inducing a voltage in the receiver coil. This voltage can power mobile devices or charge batteries. Fixed-position wireless chargers utilize neodymium-iron-boron (NdFeB) permanent magnets for precise positioning of devices, maximizing charging efficiency by ensuring optimal placement.
In conclusion, the integration of permanent magnets in wireless charging technologies like MagSafe and Qi has revolutionized the way we power our devices. By improving alignment, efficiency, and convenience, these advancements have set new standards in wireless charging, making it a more attractive option for consumers and manufacturers alike.
