Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

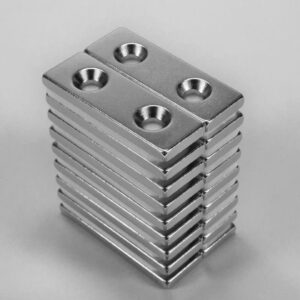

| EPI Product ID | EPI-BX882CS-P |
|---|---|
| Dimensions | 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 11.03 lbs |

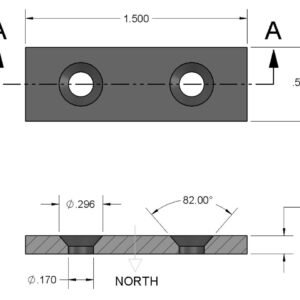

| EPI Product ID | EPI-BX882CS-S |
|---|---|
| Dimensions | 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 11.03 lbs |

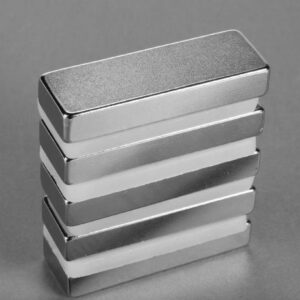

| EPI Product ID | EPI-BX884 |
|---|---|
| Dimensions | 1 1/2″ x 1/2″ x 1/4″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 26.41 lbs |

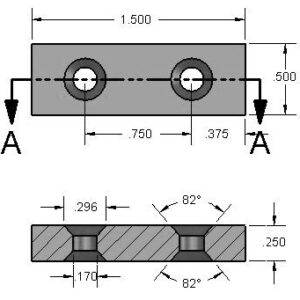

| EPI Product ID | EPI-BX884DCS |
|---|---|
| Dimensions | 1 1/2″ x 1/2″ x 1/4″ thick w/ holes to accept #6 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 23.99 lbs |

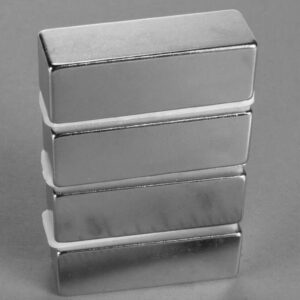

| EPI Product ID | EPI-BX888 |
|---|---|
| Dimensions | 1 1/2″ x 1/2″ x 1/2″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 42.63 lbs |

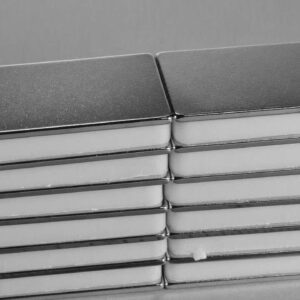

| EPI Product ID | EPI-BX8C1 |
|---|---|
| Dimensions | 1 1/2″ x 3/4″ x 1/16″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 7.17 lbs |
