About Ring Magnets

NdFeB Ring Magnets

Standard Product List

Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

RE22CS-N-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RE22CS-N-N52
Dimensions	7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	12.28 lbs

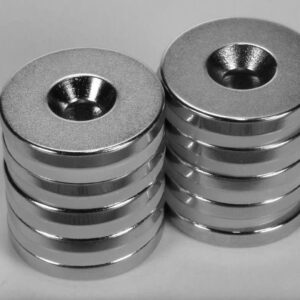

RE22CS-P Neodymium Ring Magnets

EPI Product ID	EPI-RE22CS-P
Dimensions	7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	10.23 lbs

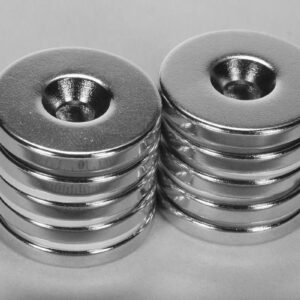

RE22CS-P-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RE22CS-P-N52
Dimensions	7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	12.28 lbs

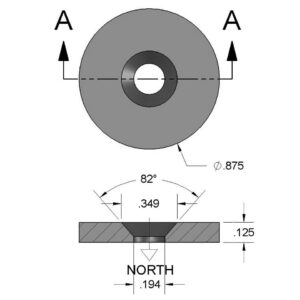

RE22CS-S Neodymium Ring Magnets

EPI Product ID	EPI-RE22CS-S
Dimensions	7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	10.23 lbs

RE22CS-S-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RE22CS-S-N52
Dimensions	7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	12.28 lbs

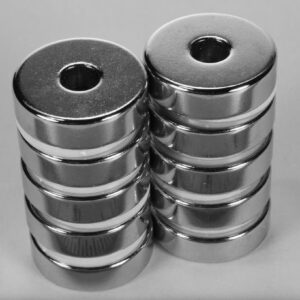

RE44 Neodymium Ring Magnets

EPI Product ID	EPI-RE44
Dimensions	7/8″ od x 1/4″ id x 1/4″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	21.69 lbs
