About Ring Magnets

NdFeB Ring Magnets

Standard Product List

Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

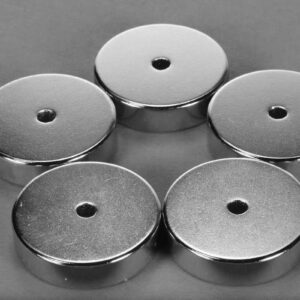

RX024DIA Neodymium Ring Magnets

EPI Product ID	EPI-RX024DIA
Dimensions	1″ od x 1/8″ id x 1/4″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Diametrical
Pull Force	11.11 lbs

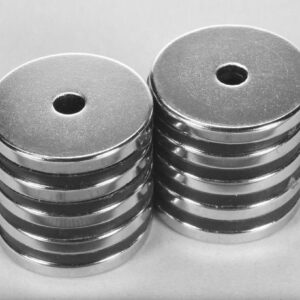

RX032 Neodymium Ring Magnets

EPI Product ID	EPI-RX032
Dimensions	1″ od x 3/16″ id x 1/8″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	12.41 lbs

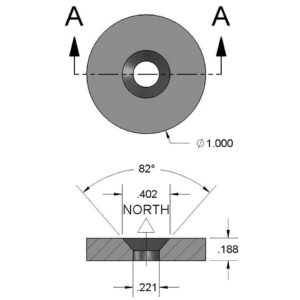

RX033CS-N Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-N
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	20.51 lbs

RX033CS-N-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-N-N52
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	24.61 lbs

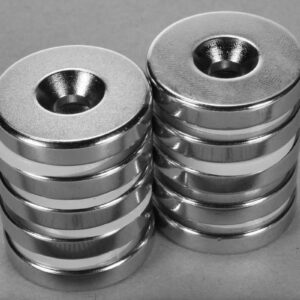

RX033CS-P Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-P
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	20.51 lbs

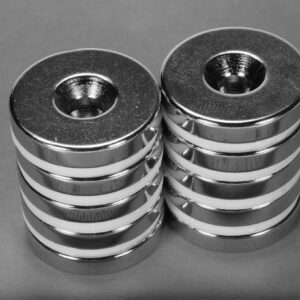

RX033CS-P-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-P-N52
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	24.61 lbs
