About Ring Magnets

NdFeB Ring Magnets

Standard Product List

Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

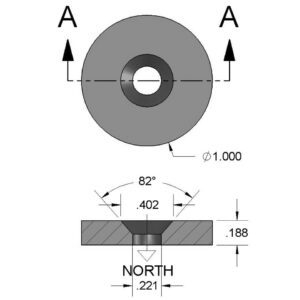

RX033CS-S Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-S
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	20.51 lbs

RX033CS-S-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RX033CS-S-N52
Dimensions	1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	24.61 lbs

RX034DCSPC-BLK Neodymium Ring Magnets

EPI Product ID	EPI-RX034DCSPC-BLK
Dimensions	1″ od x 0.194″ id x 0.349″ id x 1/4″ thick w/ hole to accept #6 screws
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni Black Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	9.56 lbs

RX038DCB Neodymium Ring Magnets

EPI Product ID	EPI-RX038DCB
Dimensions	1″ od x 0.195″ id x 0.375″ id x 1/2″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	39.62 lbs

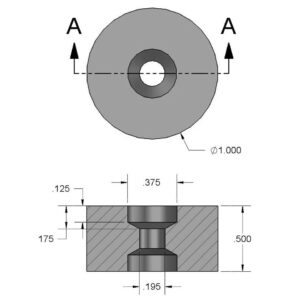

RX038DCB-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RX038DCB-N52
Dimensions	1″ od x 0.195″ id x 0.375″ id x 1/2″ thick
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	49.06 lbs

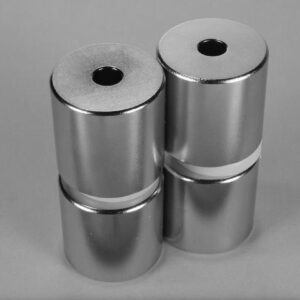

RX04X0 Neodymium Ring Magnets

EPI Product ID	EPI-RX04X0
Dimensions	1″ od x 1/4″ id x 1″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	57.49 lbs
