Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

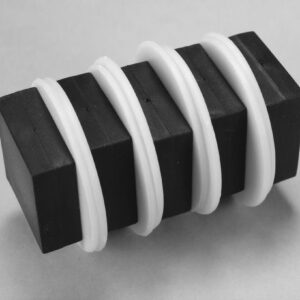

| EPI Product ID | EPI-BX0X06TP-N52 |
|---|---|
| Dimensions | 1″ x 1″ x 3/8″ thick |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Thermoplastic |
| Magnetization Direction | Thru Thickness |
| Pull Force | 24.41 lbs |

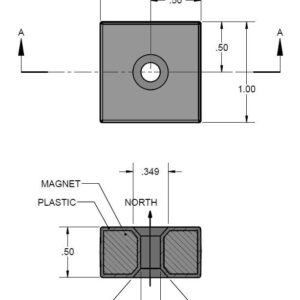

| EPI Product ID | EPI-BX0X08DCSPC-BLK |
|---|---|
| Dimensions | 1″ x 1″ x 1/2″ thick w/ hole to accept #8 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Black Plastic |
| Magnetization Direction | Thru Thickness |
| Pull Force | 27.3 lbs |

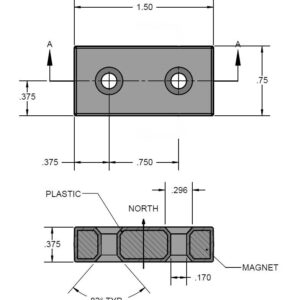

| EPI Product ID | EPI-BX8C6DCSPC-BLK |
|---|---|
| Dimensions | 1 1/2″ x 3/4″ x 3/8″ thick?w/ holes to accept #6 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Black Plastic |
| Magnetization Direction | Thru Thickness |
| Pull Force | 26.34 lbs |

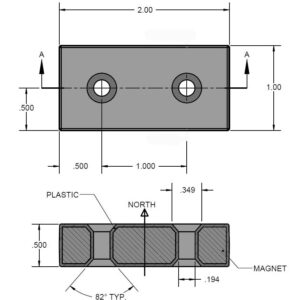

| EPI Product ID | EPI-BY0X08DCSPC-BLK |
|---|---|
| Dimensions | 2″ x 1″ x 1/2″ thick w/ holes to accept #8 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Black Plastic |
| Magnetization Direction | Thru Thickness |
| Pull Force | 42.76 lbs |

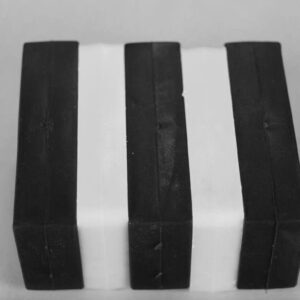

| EPI Product ID | EPI-BY0X08TP-N52 |
|---|---|
| Dimensions | 2″ x 1″ x 1/2″ thick |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Thermoplastic |
| Magnetization Direction | Thru Thickness |
| Pull Force | 63.02 lbs |

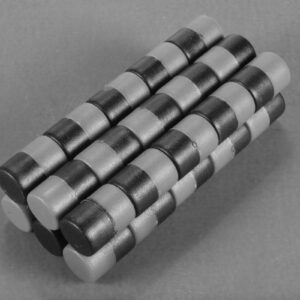

| EPI Product ID | EPI-D68PC-RB |
|---|---|
| Dimensions | 3/8″ dia. x 1/2″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni-Plastic |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 2.51 lbs |
