Category Details

Plastic/Rubber Coated Neodymium Magnets

Standard Product List

Here list our standard products. For any custom sizes, grade or coating/plating specifications, please contact us directly to get a quote.

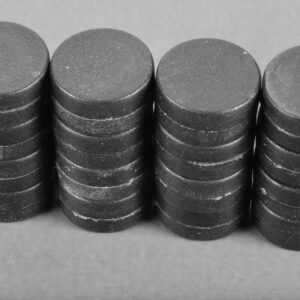

D84PC-BLK Neodymium Disc/Cylinder Magnets

EPI Product ID	EPI-D84PC-BLK
Dimensions	1/2″ dia. x 1/4″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni-Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	3.45 lbs

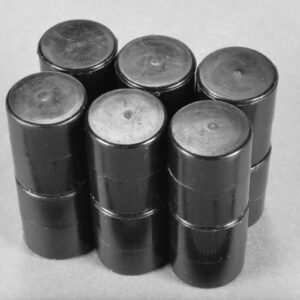

D8APC-BLK Neodymium Disc/Cylinder Magnets

EPI Product ID	EPI-D8APC-BLK
Dimensions	1/2″ dia. x 5/8″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni-Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	5.79 lbs

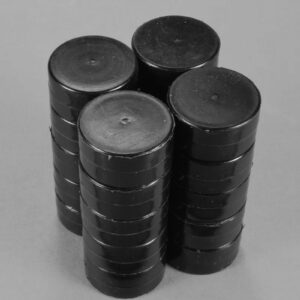

DC6PC-BLK Neodymium Disc/Cylinder Magnets

EPI Product ID	EPI-DC6PC-BLK
Dimensions	3/4″ dia. x 3/8″ thick
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni-Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	10.86 lbs

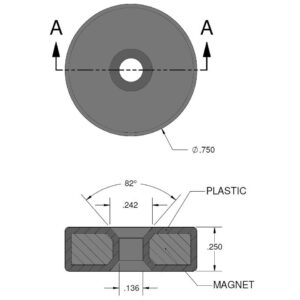

RC24DCSPC-BLK Neodymium Ring Magnets

EPI Product ID	EPI-RC24DCSPC-BLK
Dimensions	3/4″ od x 1/4″ thick w/ holes to accept #4 screws
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni Black Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	6.61 lbs

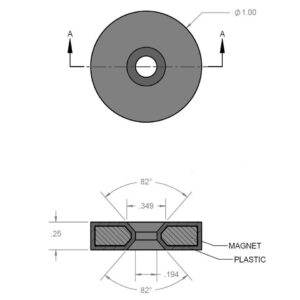

RX034DCSPC-BLK Neodymium Ring Magnets

EPI Product ID	EPI-RX034DCSPC-BLK
Dimensions	1″ od x 0.194″ id x 0.349″ id x 1/4″ thick w/ hole to accept #6 screws
Tolerances	All ±0.004″
Grade	N42
Plating/Coating	Ni-Cu-Ni Black Plastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	9.56 lbs

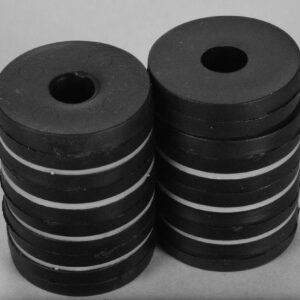

RX054TP-N52 Neodymium Ring Magnets

EPI Product ID	EPI-RX054TP-N52
Dimensions	1″ od x 5/16″ id x 1/4″ thick
Tolerances	All ±0.004″
Grade	N52
Plating/Coating	Thermoplastic
Magnetization Direction	Axial (Poles on Flat Ends)
Pull Force	11.12 lbs
