B428-N52 Neodymium Block Magnets

EPI Product ID EPI-B428-N52
Dimensions 1/4″ x 1/8″ x 1/2″ thick
Tolerances All ±0.004″
Grade N52
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Thru Thickness
Pull Force 3.02 lbs

Description

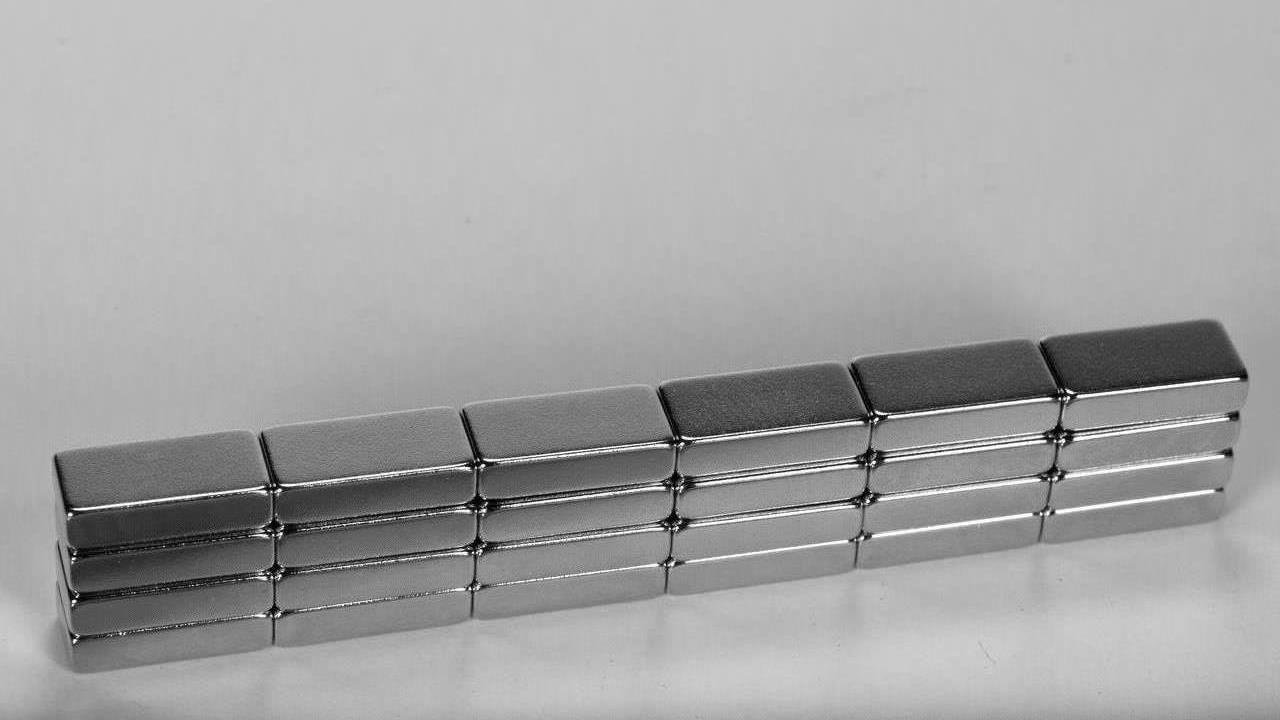

Sharing the same dimensions as our B842 blocks, these magnets differ in their magnetization direction, which runs through their 1/2″ dimension. The poles reside on the 1/4″ x 1/8″ sides, causing them to attract each other in an “end-to-end” fashion, as demonstrated in the bottom picture. This distinct magnetic behavior provides an engaging twist to their usage, sparking interest and fascination.
