| EPI Product ID | EPI-B888-2PA-N52 |
|---|---|
| Dimensions | 1/2″ x 1/2″ x 1/2″ (- 0.125″ hole) Hole parallel to magnetization direction |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 21.32 lbs |

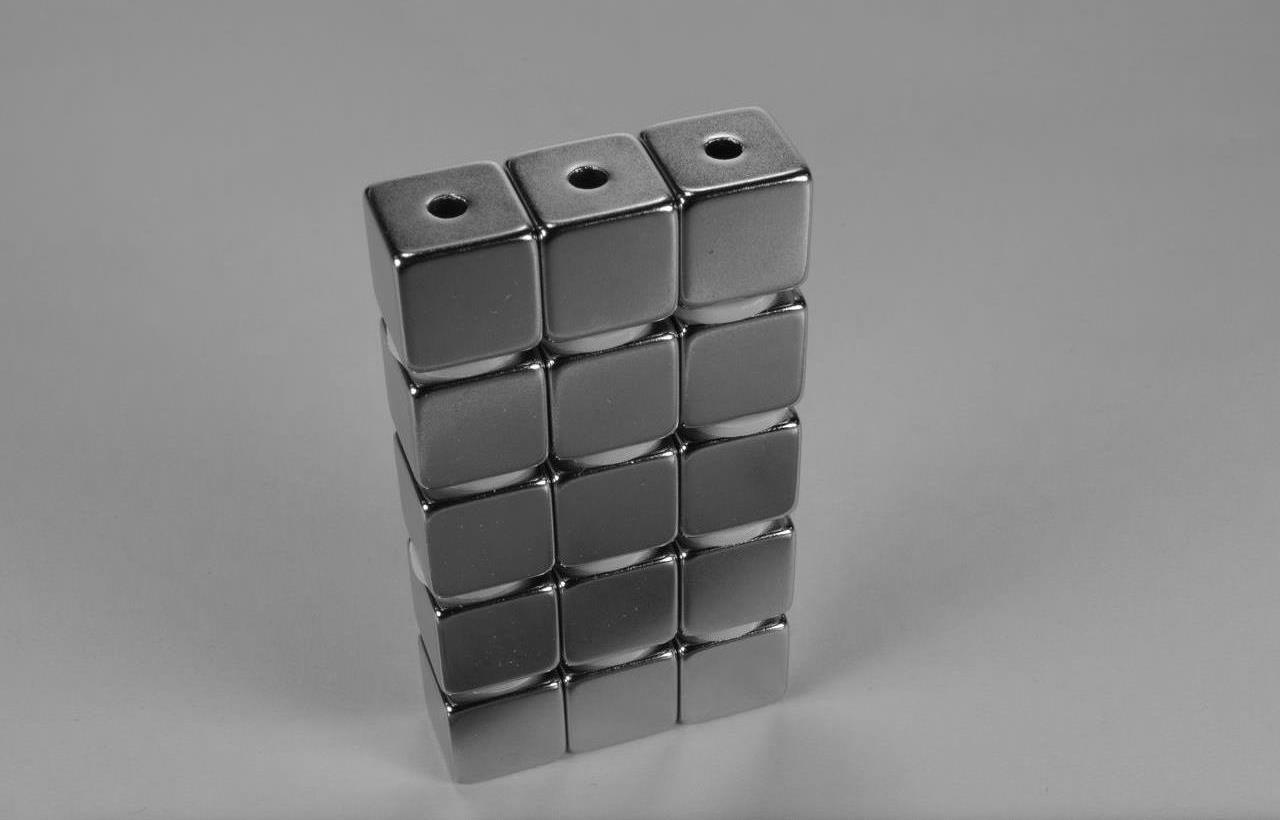

These 1/2″ cubes are specifically engineered to be used in conjunction with our B888-2PE-N52 cubes to construct Halbach Arrays. The holes are designed to accommodate a 1/8″ rod, facilitating magnet alignment in two dimensions and simplifying the assembly process. You can opt for a threaded rod, allowing for the placement of nuts on either end to provide the necessary clamping force, or choose a plain rod with an alternative source of clamping force.
