| EPI Product ID | EPI-BC82CS-N-N52 |
|---|---|

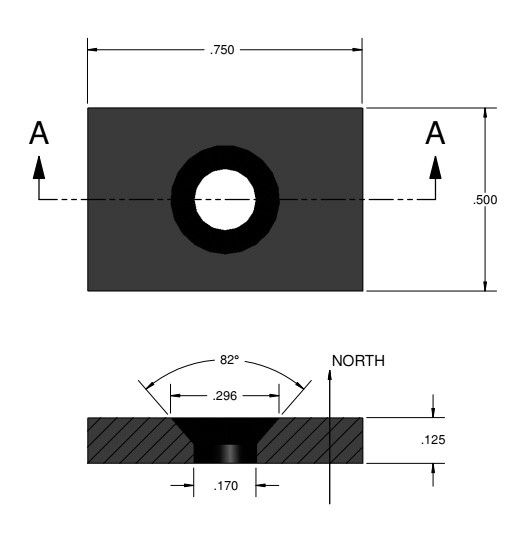

| Dimensions | 3/4″ x 1/2″ x 1/8″ thick with countersunk hole for #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 8.83 lbs |
We provide a 3/4″ x 1/2″, 1/8″ thick, N52 grade rectangular block magnet, designed with a hole for a #6 flathead screw to facilitate effortless fastening. The BC82CS-N-N52 is magnetized with the north pole on the countersunk side. This is also available in the N42 grade as BC82CS-N.
These countersunk block magnets are versatile, suitable for a broad range of applications, including door closures and tool hangers.
