| EPI Product ID | EPI-BC82CS-S-N52 |
|---|---|

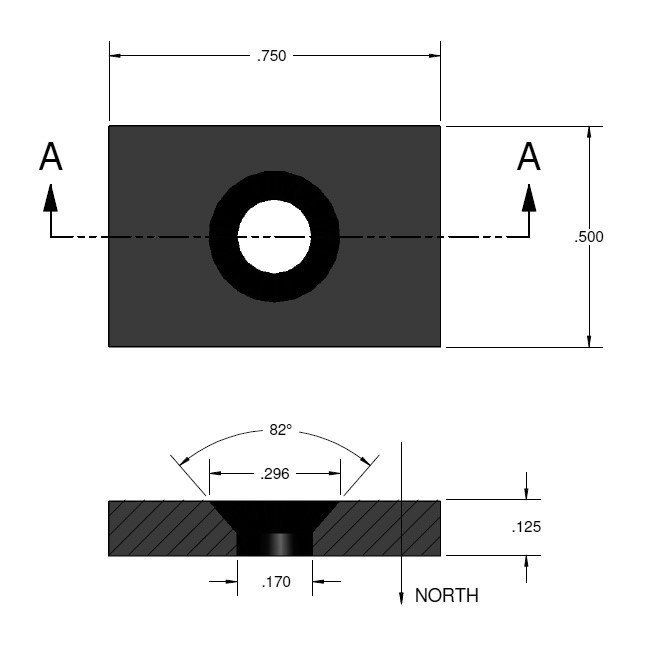

| Dimensions | 3/4″ x 1/2″ x 1/8″ thick with countersunk hole for #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 8.83 lbs |
We present our N52, 3/4″ x 1/2″ and 1/8″ thick rectangular block magnet featuring a convenient #6 flathead screw hole for effortless attachment. The BC82CS-S-N52’s unique feature is its magnetization, with the south pole located on the countersunk side. We also provide this model in grade N42; please refer to BC82CS-S for details.
Embracing an array of applications, these countersunk block magnets prove to be remarkably useful, from securing door closures to hanging tools.
