| EPI Product ID | EPI-BCC4DCS |
|---|---|

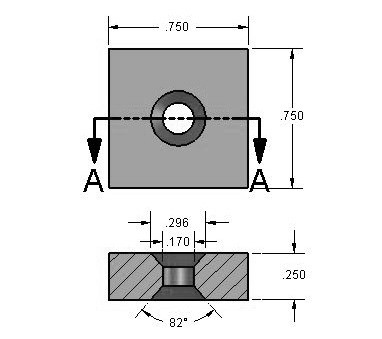

| Dimensions | 3/4″ x 3/4″ x 1/4″ thick w/ countersunk hole to accept #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 19.26 lbs |
We present the BCC4DCS, a formidable block magnet enhanced by two countersunk holes, one on each side. This feature makes it easy to fasten this potent magnet to surfaces like wood, aluminum, and stainless steel. Thanks to its reversible nature, it can be oriented north-side-up or south-side-up, delivering identical performance either way.
Delve into our comprehensive range of Countersunk Magnets to discover the perfect fit for your needs.
For those preferring a magnet without the countersunk hole, we offer this size under part number BCC4.
