| EPI Product ID | EPI-BX082CS-N-N52 |
|---|---|
| Dimensions | 1″ x 1/2″ x 1/8″ thick |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 11.03 lbs |

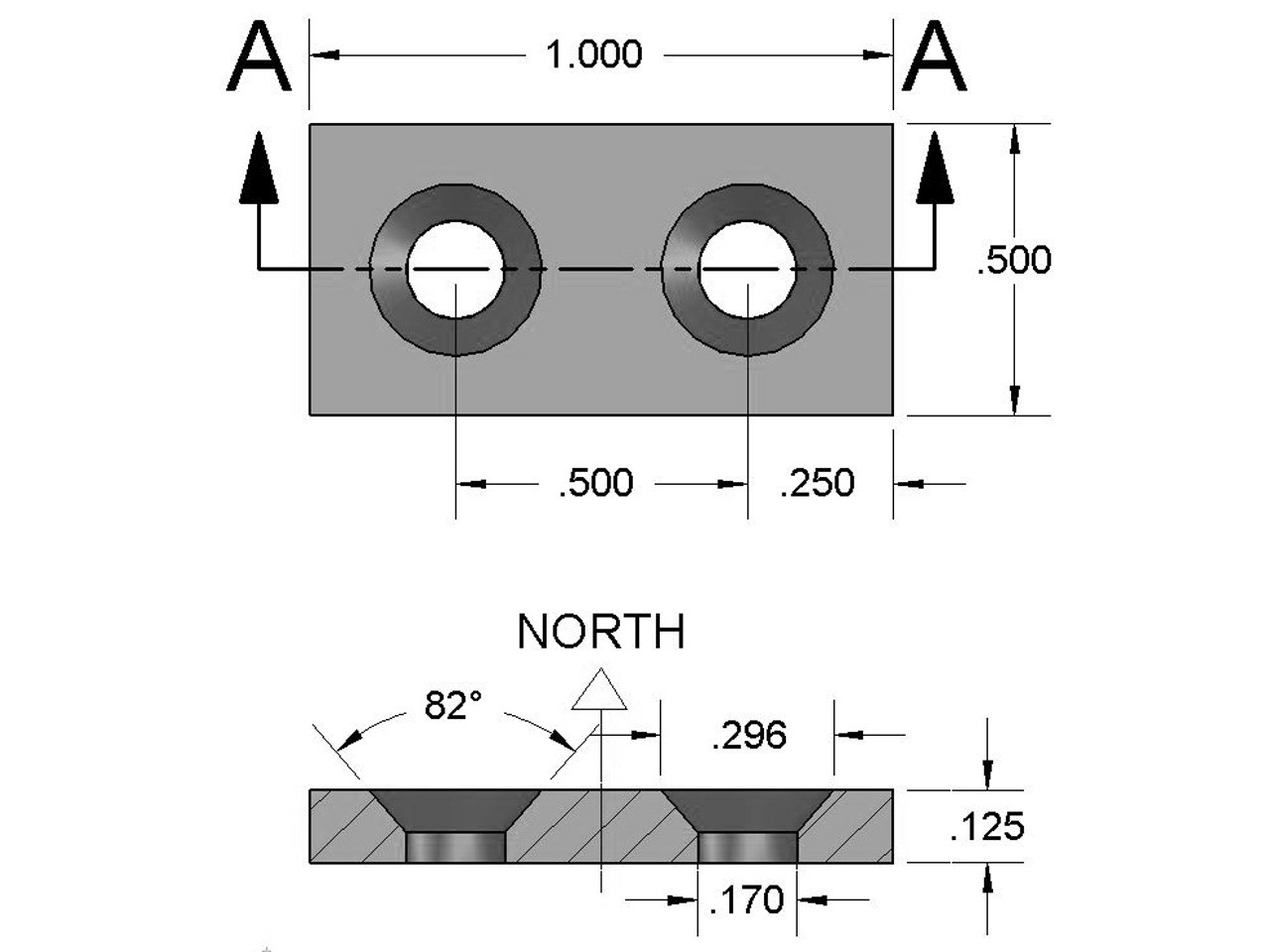

This popular block magnet measures 1″ x 1/2″ with a thickness of 1/8″, and it features holes for two #6 flathead screws, providing easy fastening. What sets the BX082CS-N-N52 apart is its high-grade N52 magnet material, offering even more magnetic strength. This magnet is magnetized such that the north pole is on the countersunk side.
These robust N52 grade countersunk block magnets are perfect for various applications, including door closures, tool hangers, and more. They provide the impressive magnetic power of an N52 magnet, coupled with the practicality of easy mounting.
This magnet is also available in grade N42 as part number BX082CS-N. Please handle with care due to its strength.
