BX082CS-P Neodymium Block Magnets

EPI Product ID EPI-BX082CS-P
Dimensions 1″ x 1/2″ x 1/8″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Thru Thickness
Pull Force 9.19 lbs

Description

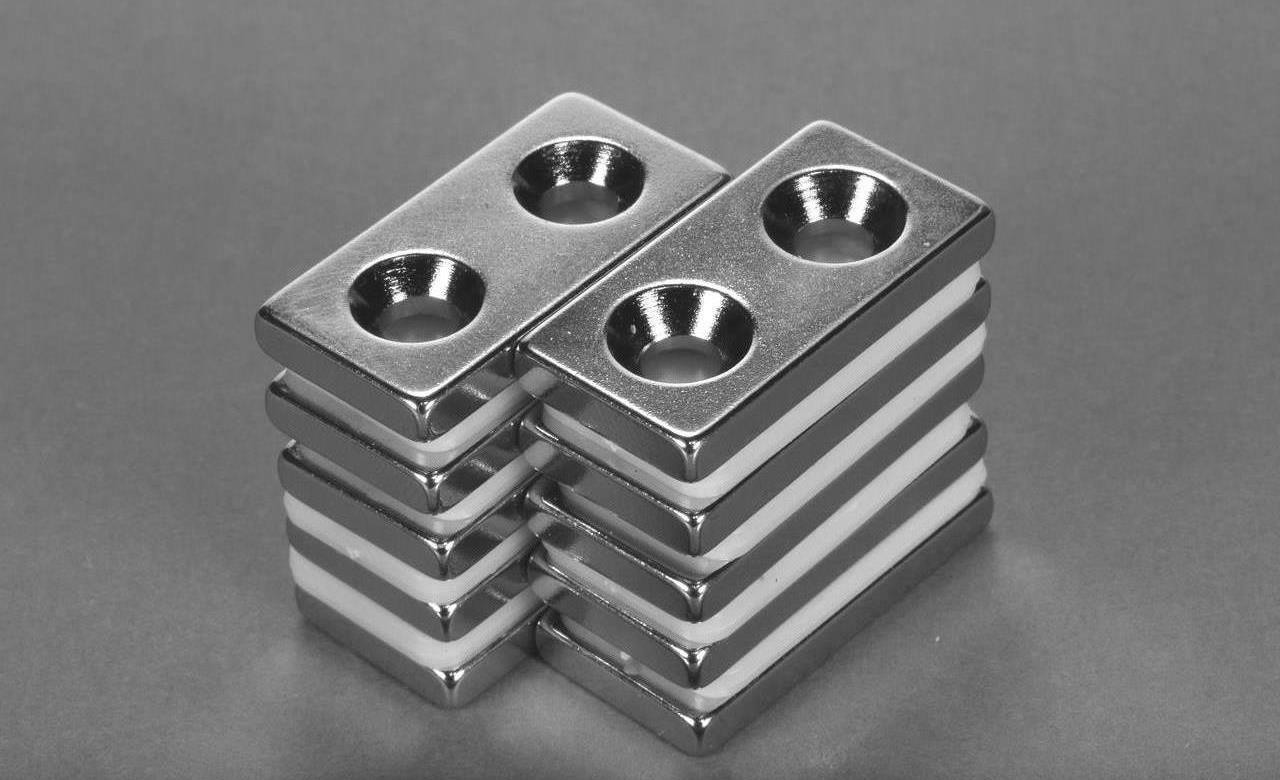

The BX082CS-P offers the popular size of 1″ x 1/2″ with a 1/8″ thickness, and it features holes for two #6 flathead screws, providing an easy fastening solution. Unique to this design, the magnets are sold in pairs, with one magnet having the north pole on the countersink side and the other having the south pole on the countersink side. This clever design means they’ll attract each other when screwed into place, offering a secure hold.

These countersunk block magnets are incredibly versatile and can be used in a wide variety of applications, from door closures to tool hangers. The strength and utility of these magnets make them a popular choice for many practical uses.
