| EPI Product ID | EPI-BX088DCS |
|---|---|

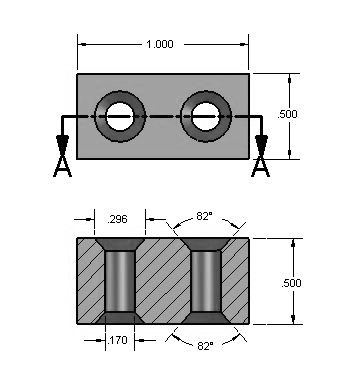

| Dimensions | 1″ x 1/2″ x 1/2″ thick w/ countersunk holes to accept #6 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 26.74 lbs |
The BX088DCS stands out as an extraordinarily potent block magnet with a unique attribute – dual double countersunk holes! This dynamic magnet, countersunk on both sides, offers reversible functionality. The double countersunk holes facilitate adherence to surfaces typically resistant to magnets, expanding its usability. It’s a perfect choice for woodworking, construction, manufacturing, and various other custom applications.
Browse our extensive collection of Countersunk Magnets.
This size is also available in the N52 grade, without the countersunk holes, as part number BX088-N52.
