| EPI Product ID | EPI-BX882CS-N |
|---|---|

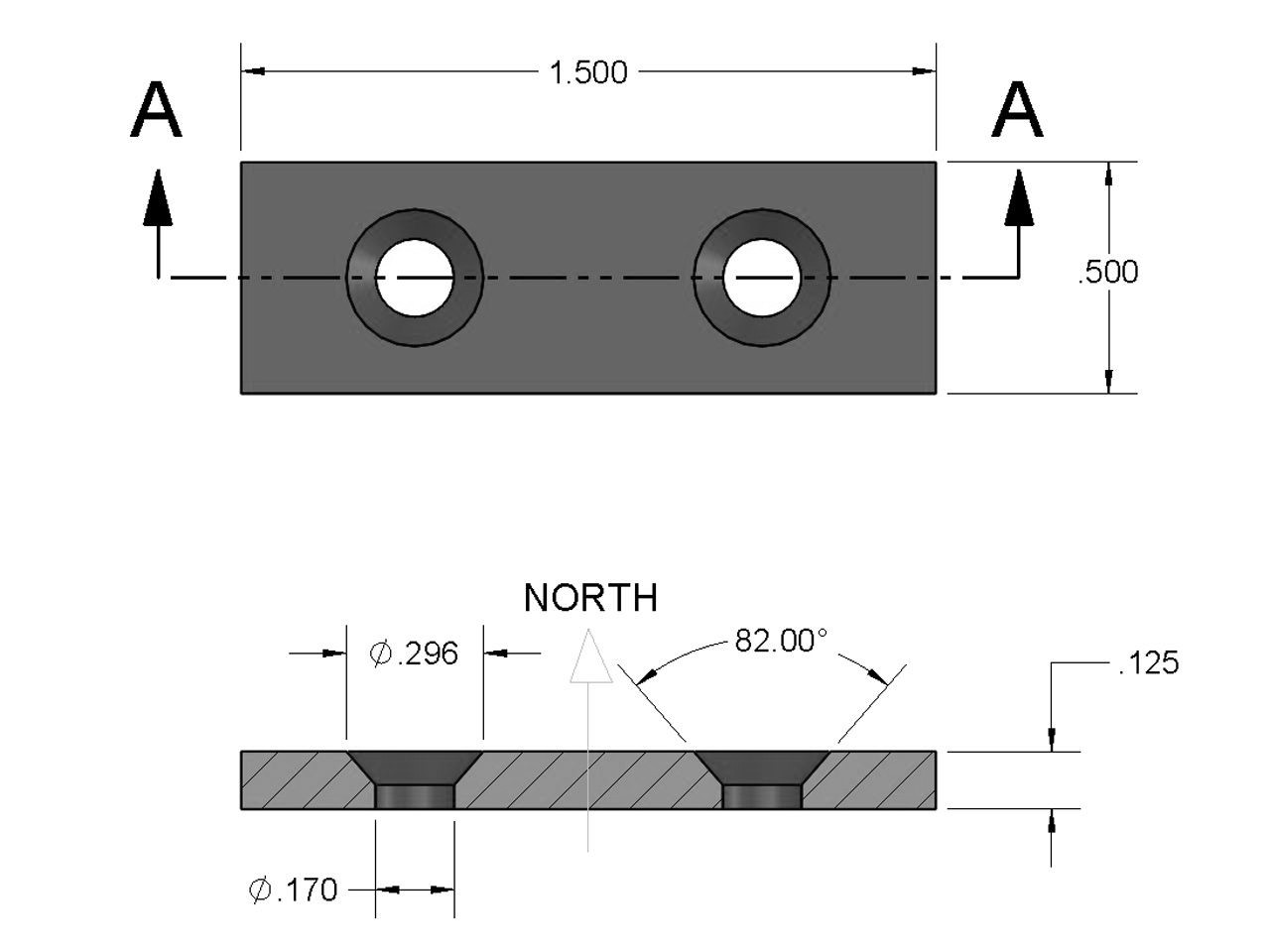

| Dimensions | 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 11.03 lbs |
Showcasing the much-desired size of 1 1/2″ x 1/2″ x 1/8″, these magnets come equipped with holes designed for two #6 flathead screws, facilitating effortless fastening. With the north pole located on the countersink side, the BX882CS-N serves versatile purposes.
These countersunk block magnets prove to be an exceptional choice for applications such as door closures and tool hangers. The same size is also available sans the countersunk holes in grade N42 as BX882 and in grade N52 as BX882-N52.
