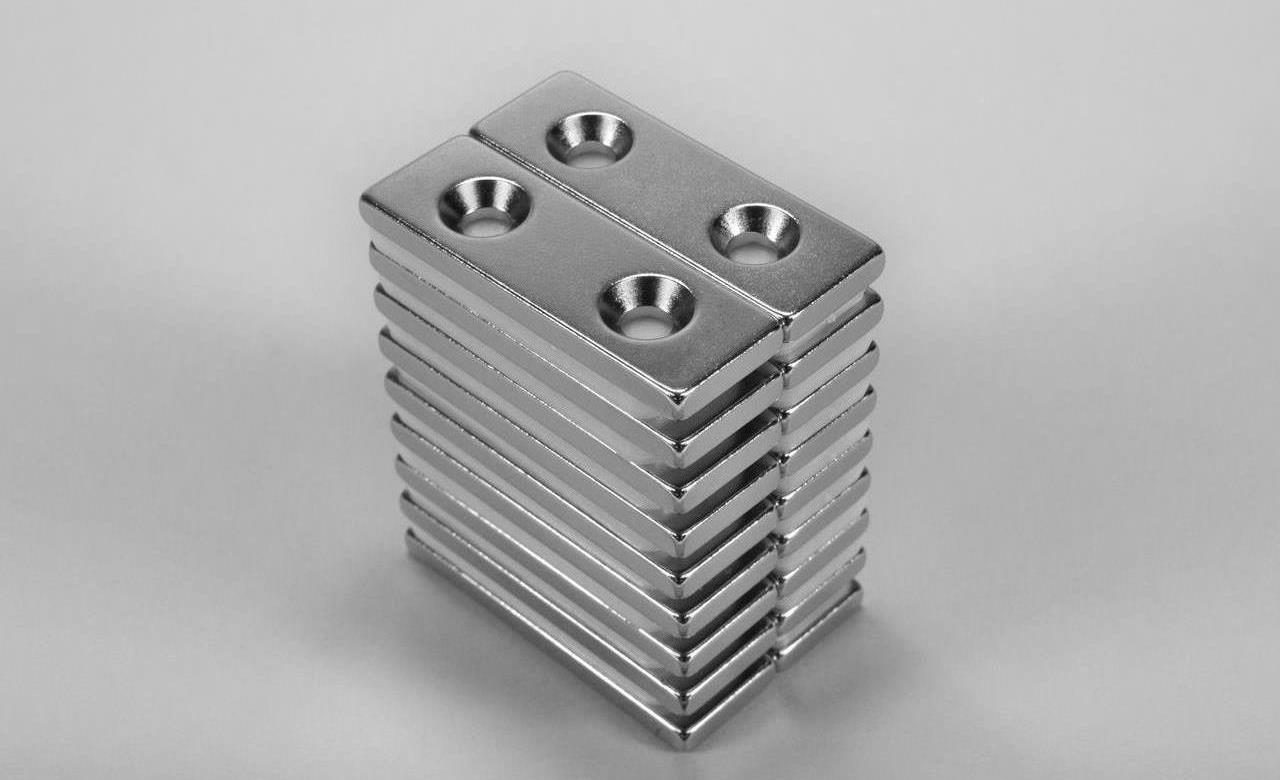

BX882CS-P Neodymium Block Magnets

EPI Product ID EPI-BX882CS-P
Dimensions 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Thru Thickness
Pull Force 11.03 lbs

Description

Introducing the widely sought-after size of 1 1/2″ x 1/2″ x 1/8″, these magnets come fitted with holes designed for two #6 flathead screws for convenient fastening. When sold in pairs, one magnet displays the north pole on the countersink side while the other features the south pole, ensuring they attract when installed.

These countersunk block magnets serve a broad range of applications, notably door closures and tool hangers. The same size without the countersunk holes is accessible in grade N42 as BX882 and in grade N52 as BX882-N52.
