| EPI Product ID | EPI-BX882CS-S |
|---|---|

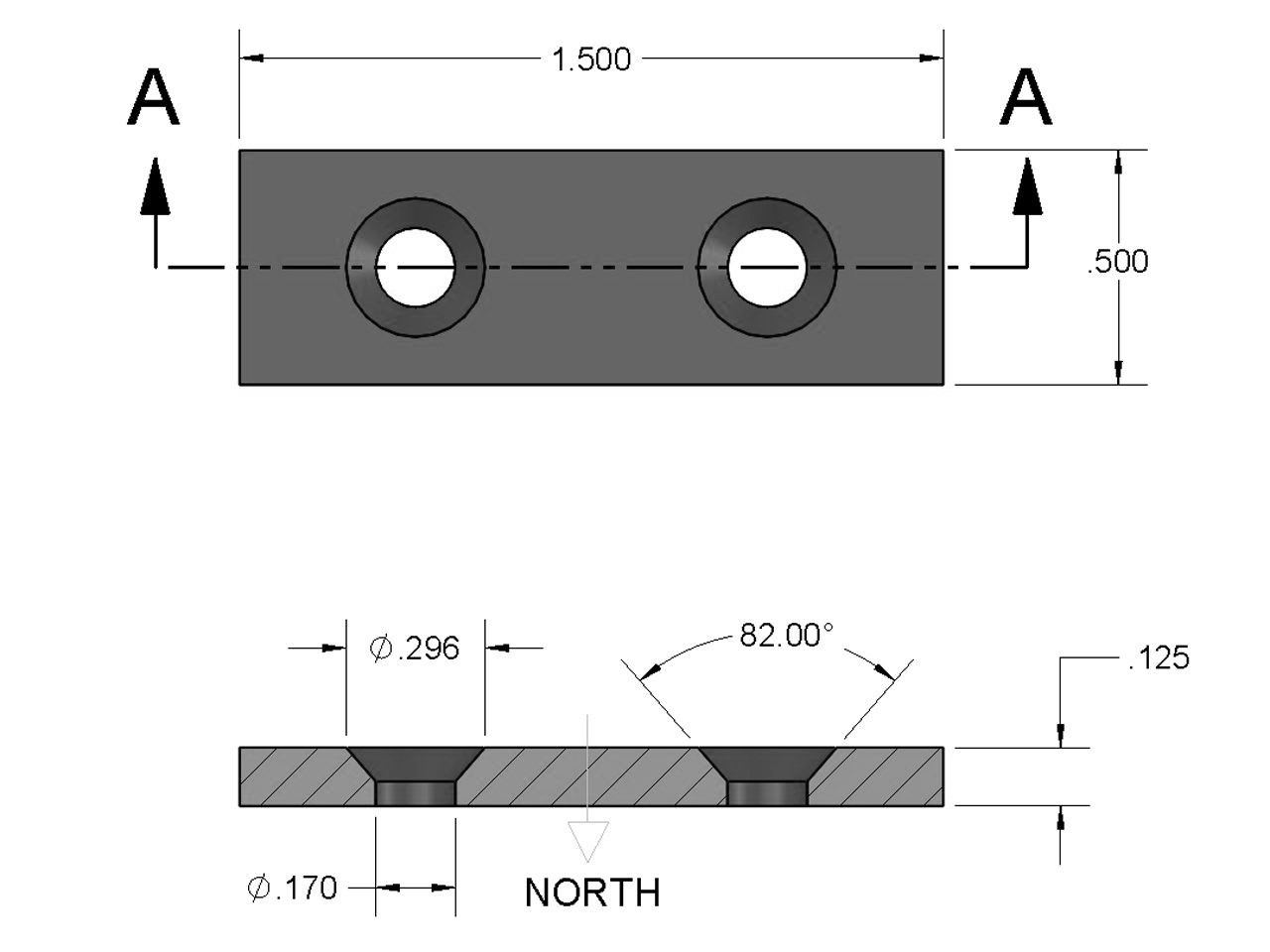

| Dimensions | 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 11.03 lbs |
Providing the sought-after dimensions of 1 1/2″ x 1/2″ x 1/8″, these magnets are prepared with holes intended for two #6 flathead screws, facilitating effortless fastening. The BX882CS-S features magnetization with the south pole on the countersink side.
Capable of fulfilling a diverse array of applications such as door closures and tool hangers, these countersunk block magnets are extremely versatile. This size is also accessible without countersunk holes in both grade N42 as BX882 and grade N52 as BX882-N52.
