| EPI Product ID | EPI-BX884DCS |
|---|---|

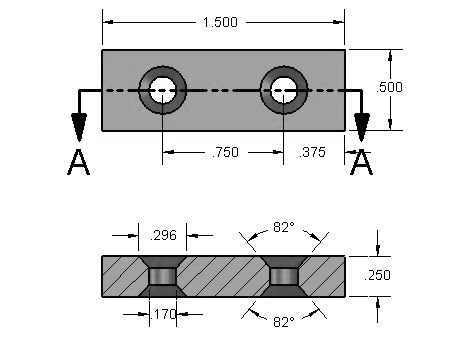

| Dimensions | 1 1/2″ x 1/2″ x 1/4″ thick w/ holes to accept #6 screws |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 23.99 lbs |
This 1.5-inch long magnet offers a variety of application possibilities thanks to its two double countersunk holes on each side. The unique design makes it perfect for a wide range of uses that may not have been possible without the power of Neodymium Magnets!
Browse our full line of Countersunk Magnets.
If you’re seeking a magnet of this size without the countersunk holes, consider part number BX884.
