BY0X08DCSPC-BLK Neodymium Block Magnets

EPI Product ID EPI-BY0X08DCSPC-BLK

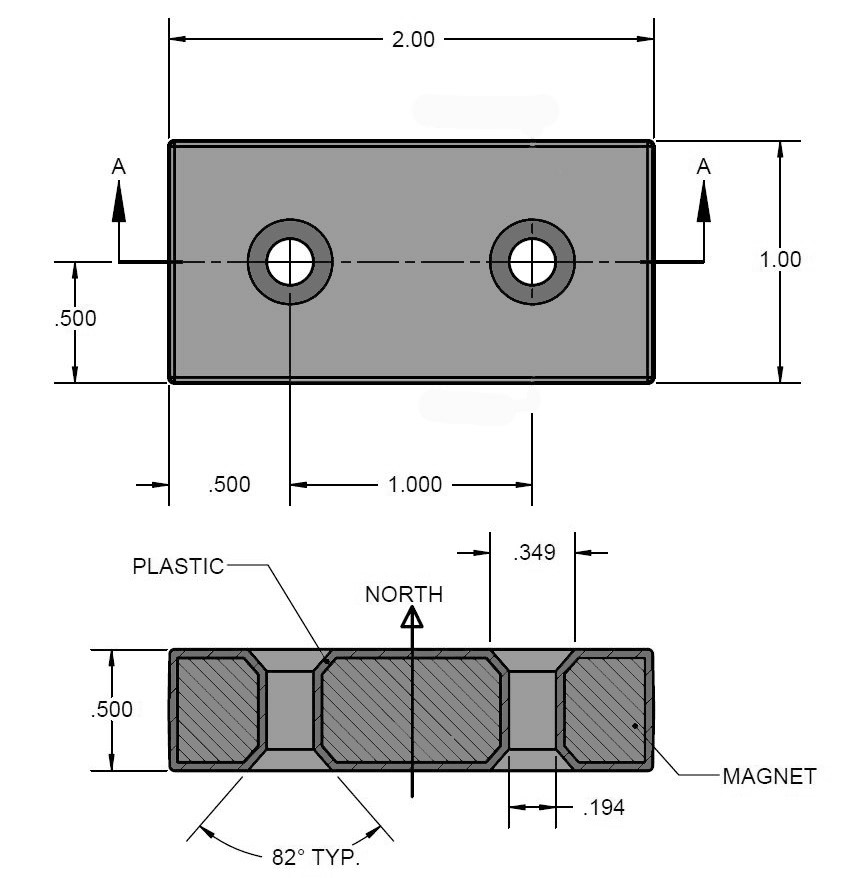

Dimensions 2″ x 1″ x 1/2″ thick w/ holes to accept #8 screws
Tolerances All ±0.004″
Grade N42
Plating/Coating Black Plastic
Magnetization Direction Thru Thickness
Pull Force 42.76 lbs

Description

The BY0X08DCSPC-BLK is a 2″ long block magnet that stands out with its superior resilience and versatility. Its core of neodymium magnet power is covered by a layer of durable black plastic. This design not only enhances the magnet’s resistance to damage and chipping, even upon high impact, but also waterproofs it, making it an excellent choice for aquatic and outdoor environments.

Each side of this powerful block magnet features two countersunk holes, further enhancing its versatility. These countersunk holes allow for easy fastening and application across a wide range of materials, from wood to stainless steel, in diverse environments – from marine settings to construction sites.

With its combination of strong magnetic force, high resilience, and flexibility, the BY0X08DCSPC-BLK is truly a superior magnet choice for a myriad of applications.

Other available variants of this size include:

BY0X08DCS: This is the standard N42 grade version of this magnet with the same countersunk design, but with a traditional nickel-plated finish.
BY0X08-N52: A high-power N52 grade magnet that’s nickel-plated for a durable finish.
BY0X08: The no-holes, nickel-plated N42 version of this magnet.
BY0X08TP-N52: The high-strength N52 grade, rubber-coated magnet for applications requiring enhanced grip and durability.
Remember, the choice of the right magnet depends on your specific needs and application environment. Always handle these powerful magnets with due care and caution.
