EPI Product ID | EPI-BY0X08TP-N52 |
---|---|
Dimensions | 2″ x 1″ x 1/2″ thick |
Tolerances | All ±0.004″ |
Grade | N52 |
Plating/Coating | Thermoplastic |
Magnetization Direction | Thru Thickness |
Pull Force | 63.02 lbs |

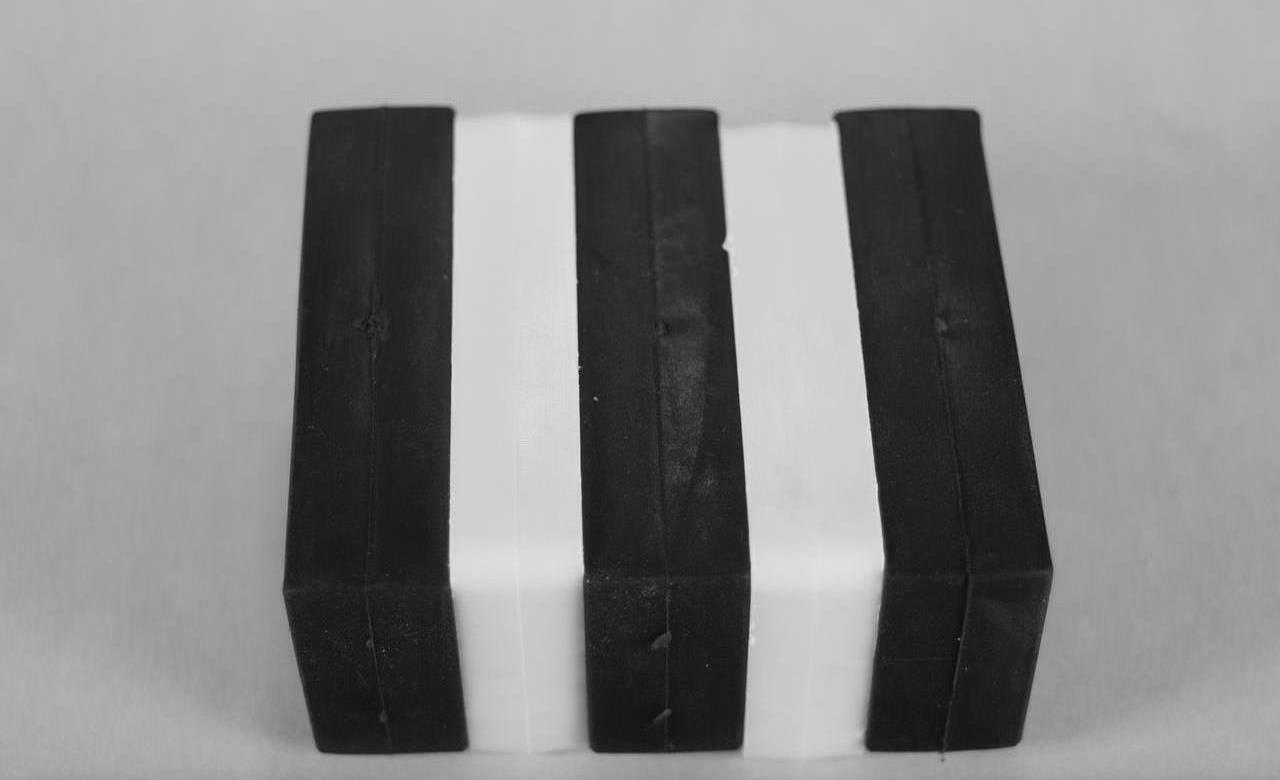

The BY0X08TP-N52 is a 2″ long block magnet made with N52 grade neodymium, one of the most powerful magnetic materials available. It features a durable thermoplastic coating that offers excellent water resistance and makes these magnets virtually indestructible. Even when slammed together, these magnets can withstand the impact without sustaining damage.
In addition to their robustness, these magnets are incredibly powerful. Two of them stuck together can be quite challenging to separate. The rubber-coated blocks are exceptional for holding through glass and various other materials. Furthermore, the rubber coating helps to prevent the magnets from sliding on different surfaces, a feature we describe in detail in our article, “The Magnetic Guide to Securing Objects to Vertical Surfaces with Magnets.”
Other variants available in this size include:
BY0X08DCS: Grade N42, Nickel Plated, Double Countersunk.
BY0X08-N52: Grade N52, Nickel Plated.
BY0X08DCSPC-BLK: Grade N42, Double Countersunk, Black Plastic Coated.
BY0X08: Grade N42, Nickel Plated.
Always handle these powerful magnets with care to prevent injury or damage.
