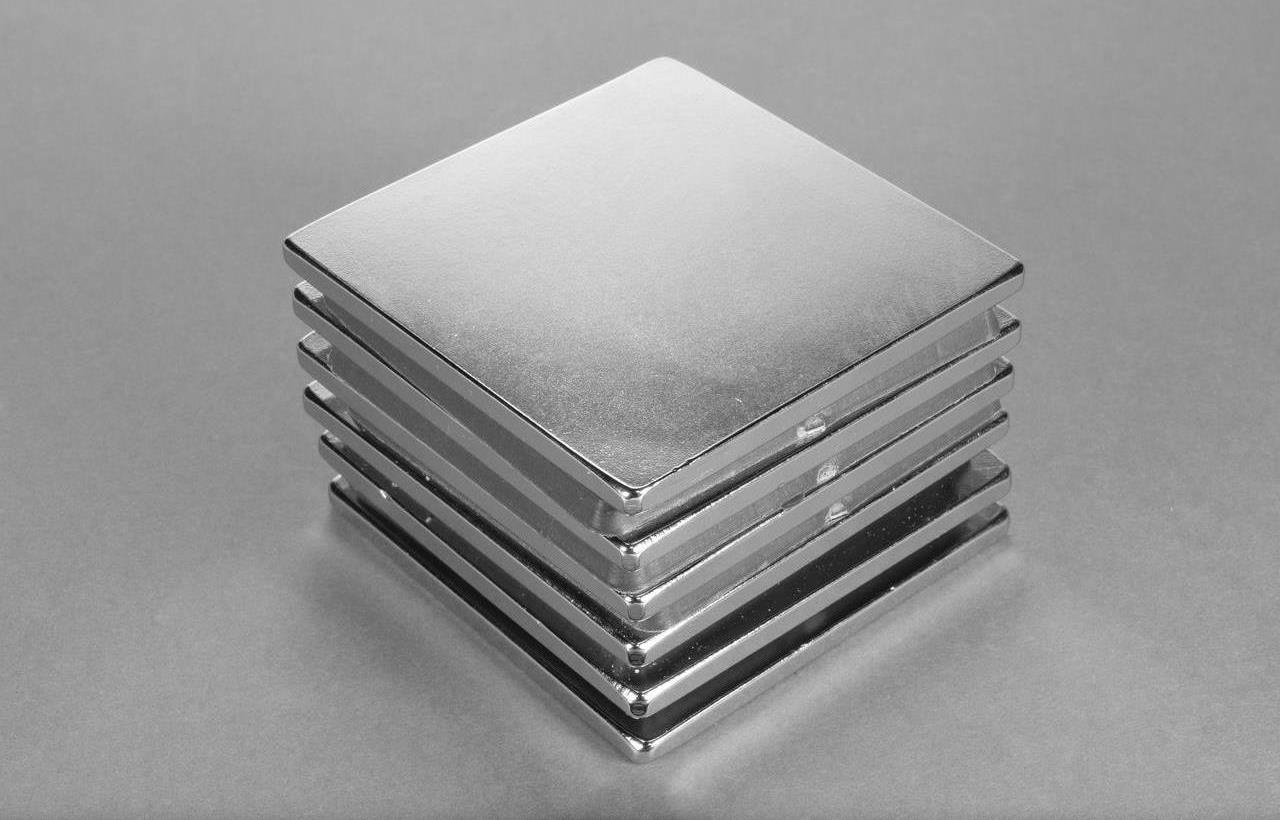

BY0Y02 Neodymium Block Magnets

EPI Product ID EPI-BY0Y02
Dimensions 2″ x 2″ x 1/8″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Thru Thickness
Pull Force 32.26 lbs

Description

The BY0Y02 is a magnet with impressive power despite its thin and large form. Although not prone to pinching due to its slim profile, its fragility requires users to exercise extreme caution during handling. The risk of cracking or breaking is significant if mishandled.

For optimal use, it’s recommended to slide these magnets like you’re dealing cards rather than lifting or dropping them. This technique reduces the risk of damage and enhances safety when handling these magnets.

Despite the need for careful handling, the BY0Y02’s unique dimensions make it an excellent choice for many applications. It delivers a strong magnetic field across a large surface area without the bulk, making it ideal for projects that require a thin yet powerful magnetic component. Whether it’s used in design projects, scientific experiments, or industrial applications, the BY0Y02 holds significant potential for those who understand how to use it effectively.
