| EPI Product ID | EPI-D32AH |
|---|---|
| Dimensions | 3/16″ dia. x 1/8″ thick |
| Tolerances | All ±0.004″ |
| Grade | N35AH |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 1.14 lbs |

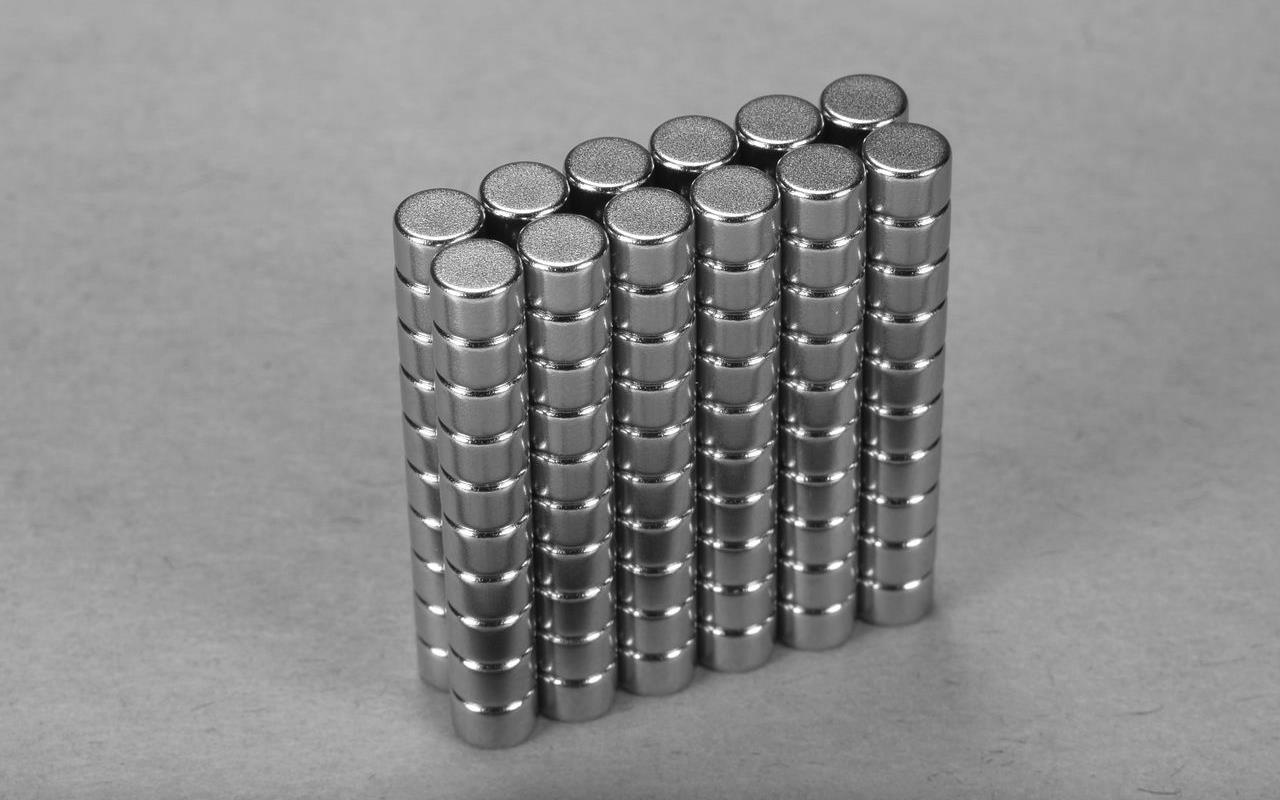

These small yet potent disc magnets are designed for a broad range of applications. Each magnet carries an impressive pull force of over 1 lb, which translates to over 1000 times the magnet’s own weight!
The AH grades truly stand out with their maximum operating temperature of 428°F (220°C), significantly higher than the standard N grades which have a maximum operating temperature of 176°F (80°C). They are excellent for applications requiring a small magnet to withstand a high-temperature environment.
If you need different magnetic properties, this size is also offered in grade N52 under part number D32-N52, in grade N42SH as part number D32SH, and in grade N42 as part number D32. Explore our wide array of options to meet your unique magnetic requirements.
