| EPI Product ID | EPI-D77 |
|---|---|
| Dimensions | 7/16″ dia. x 7/16″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 11.15 lbs |

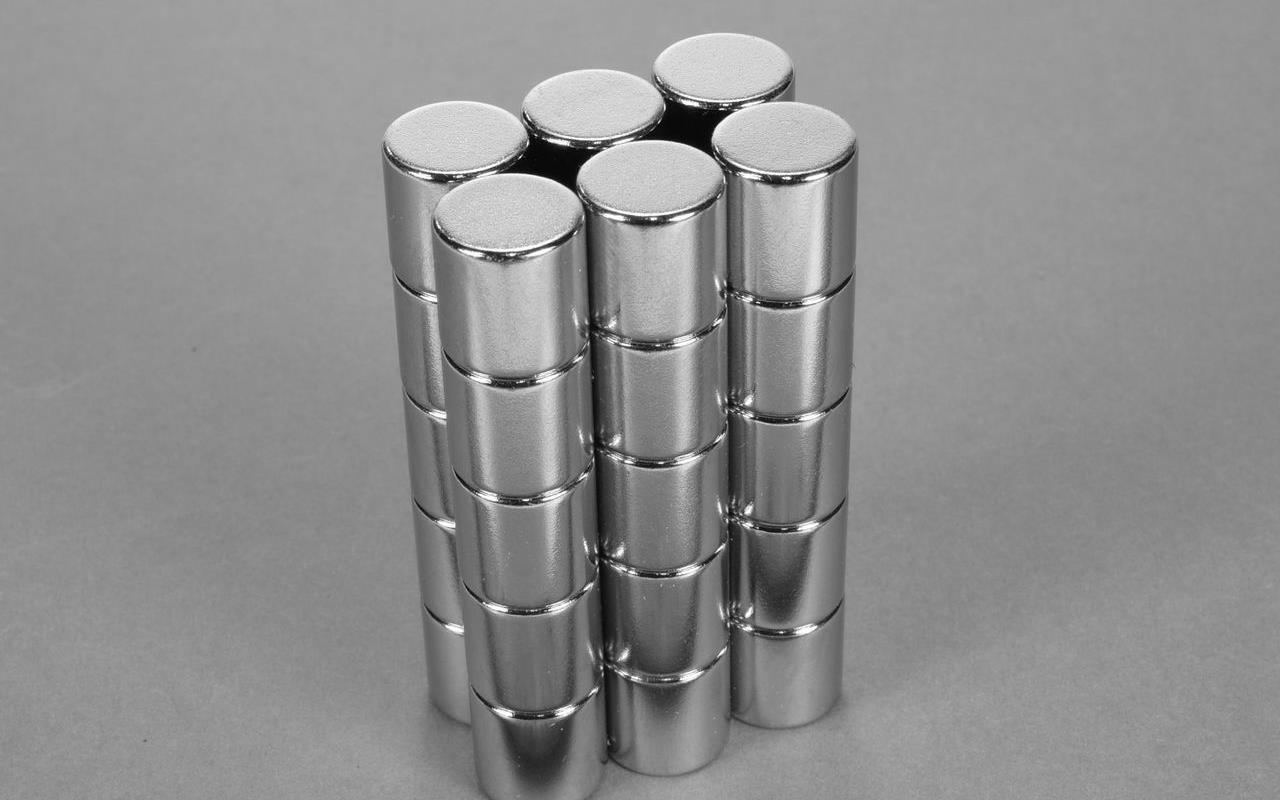

The D77 is a strong and versatile 7/16″ diameter neodymium cylinder magnet. Despite their small size, these magnets are incredibly powerful and can be used in a wide range of applications, from simple refrigerator magnets to Hall Effect sensor triggers. Their power and versatility make them a popular choice for many.
This size is also available in a stronger grade, N52, as part number D77-N52.
