EPI Product ID | EPI-D82 |
---|---|
Dimensions | 1/2″ dia. x 1/8″ thick |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 6.44 lbs |

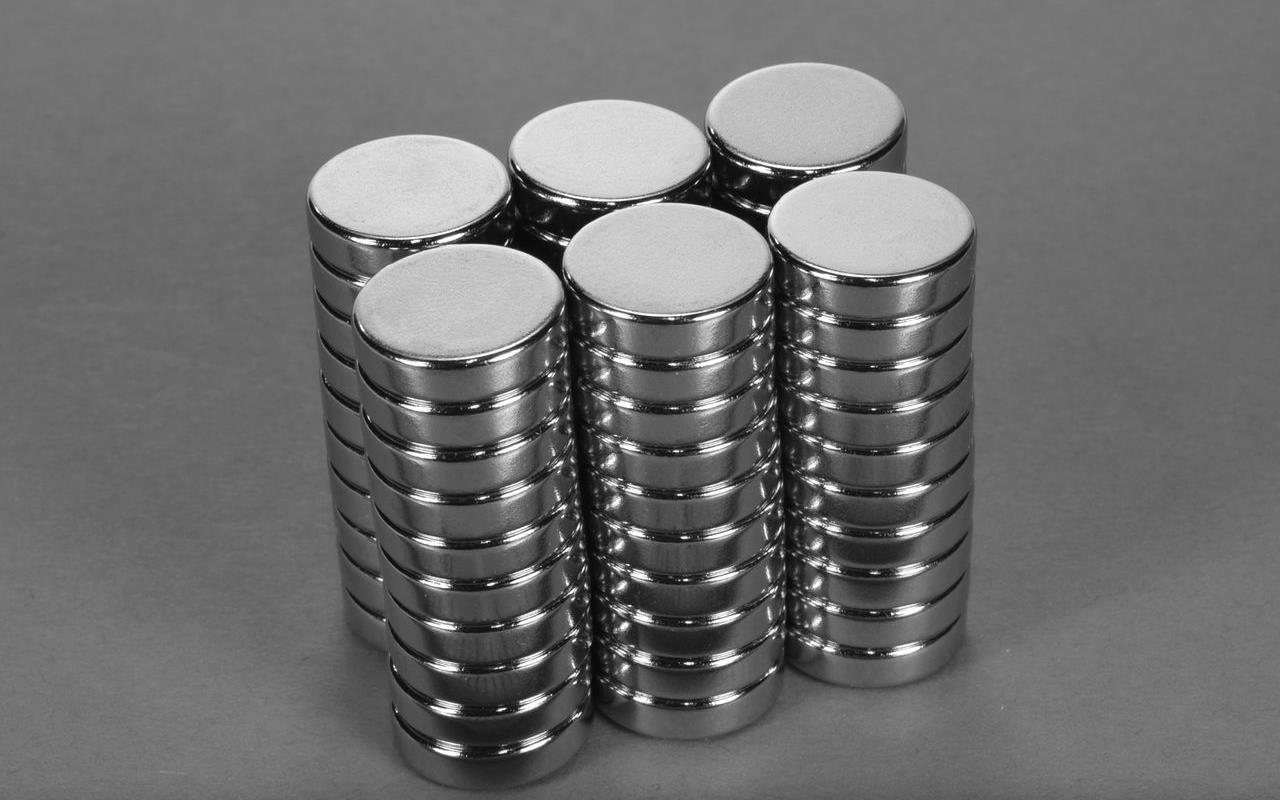

Our D82 disc magnet is a sturdy and powerful choice, boasting a diameter of 1/2″. Its solid structure and notable strength make it an excellent choice for a wide variety of applications, from engaging science experiments to serious fridge magnets, proving that size does not always dictate power.
For those in need of specific grades or finishes, we offer this size in a variety of options:
1. Grade N52 as part number D82-N52 for those needing the strongest magnetic field strength available.
2. Grade N52 with a Black Nickel finish as part number D82B-N52, offering both high strength and a sleek appearance.
3. Grade N42 with a Black Epoxy coating as part number D82E, providing durability and a versatile finish.
4. Diametrically magnetized in grade N42 as part number D82DIA, for applications requiring magnetic orientation along the diameter.
5. High Temp grade N42SH as part number D82SH for applications requiring resistance to higher temperatures.
