| EPI Product ID | EPI-D84AH |
|---|---|
| Dimensions | 1/2″ dia. x 1/4″ thick |
| Tolerances | All ±0.004″ |
| Grade | N35AH |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 9.07 lbs |

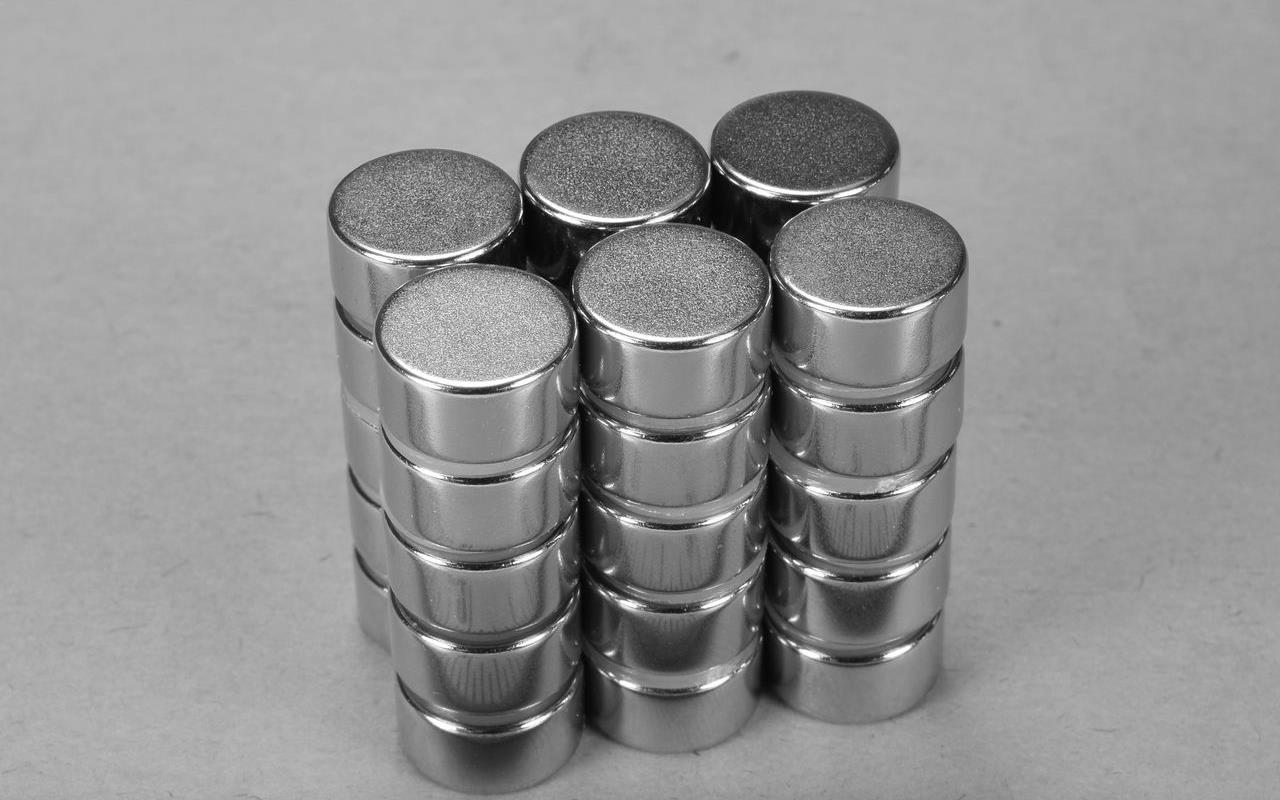

The D84AH is a specially designed disc magnet capable of withstanding high-temperature conditions. Crafted from the AH grade of neodymium, this magnet can maintain its magnetic properties even at temperatures as high as 428°F (220°C). This makes it an excellent choice for applications exposed to heat beyond the capabilities of standard N grade neodymium magnets.
If your project doesn’t require such extreme temperature resistance, the D84 magnet, made from grade N42 neodymium, might be a better fit. For added aesthetic appeal and corrosion resistance, consider the D84B-N52 magnet, which features a black nickel plating on top of grade N52 neodymium.
