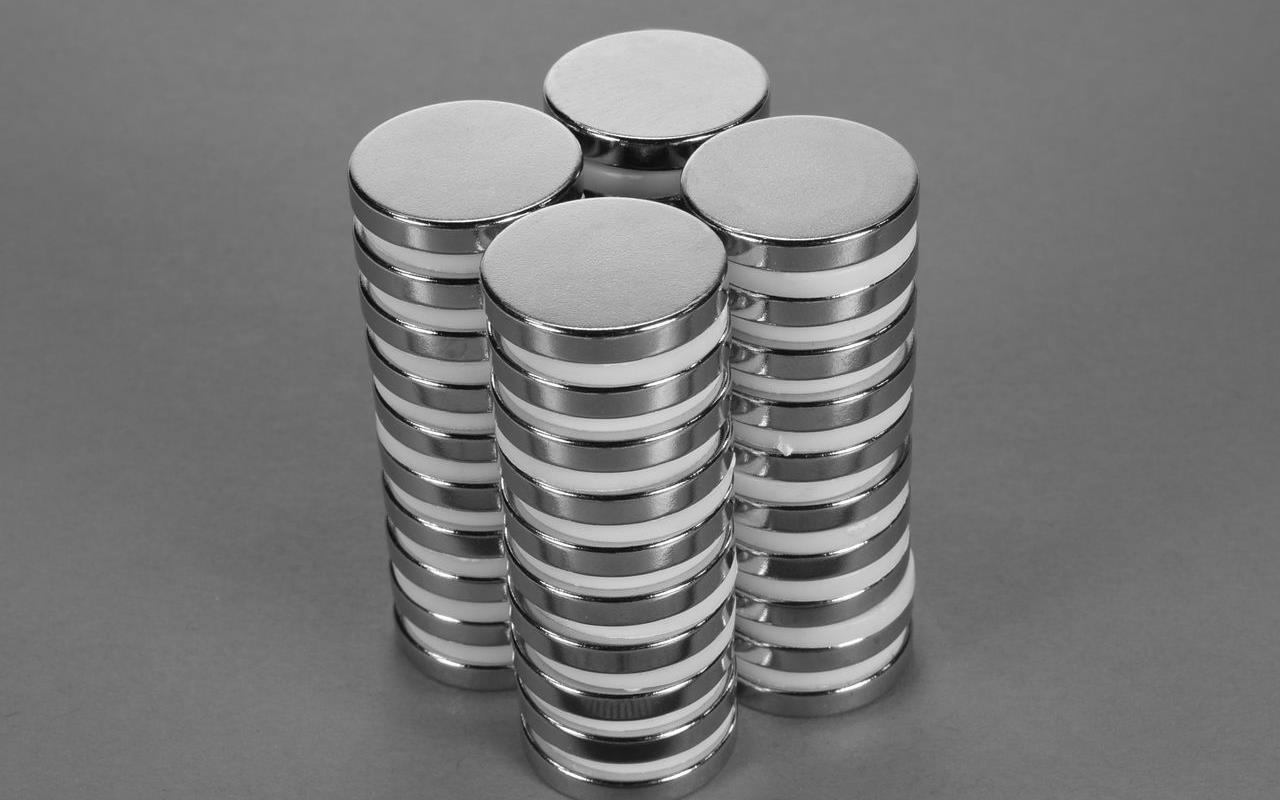

DC2 Neodymium Disc/Cylinder Magnets

EPI Product ID EPI-DC2
Dimensions 3/4″ dia. x 1/8″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 9.76 lbs

Description

Introducing the DC2, our offering of robust NdFeB disc magnets from EPI Magnets. These are not just strong magnets – they’re wickedly strong. When used on a solid metal surface, a single one of these discs can hold over 9 lbs! Their size makes them incredibly versatile, fitting snugly into a multitude of applications.

For those in search of an even more potent magnetic force, we offer this size in a higher N52 grade under the part number DC2-N52. And if you’re after a magnet with additional aesthetic appeal, we also have the DC2 in a grade N42 version, which comes with a sleek black epoxy coating, available under the part number DC2E.
