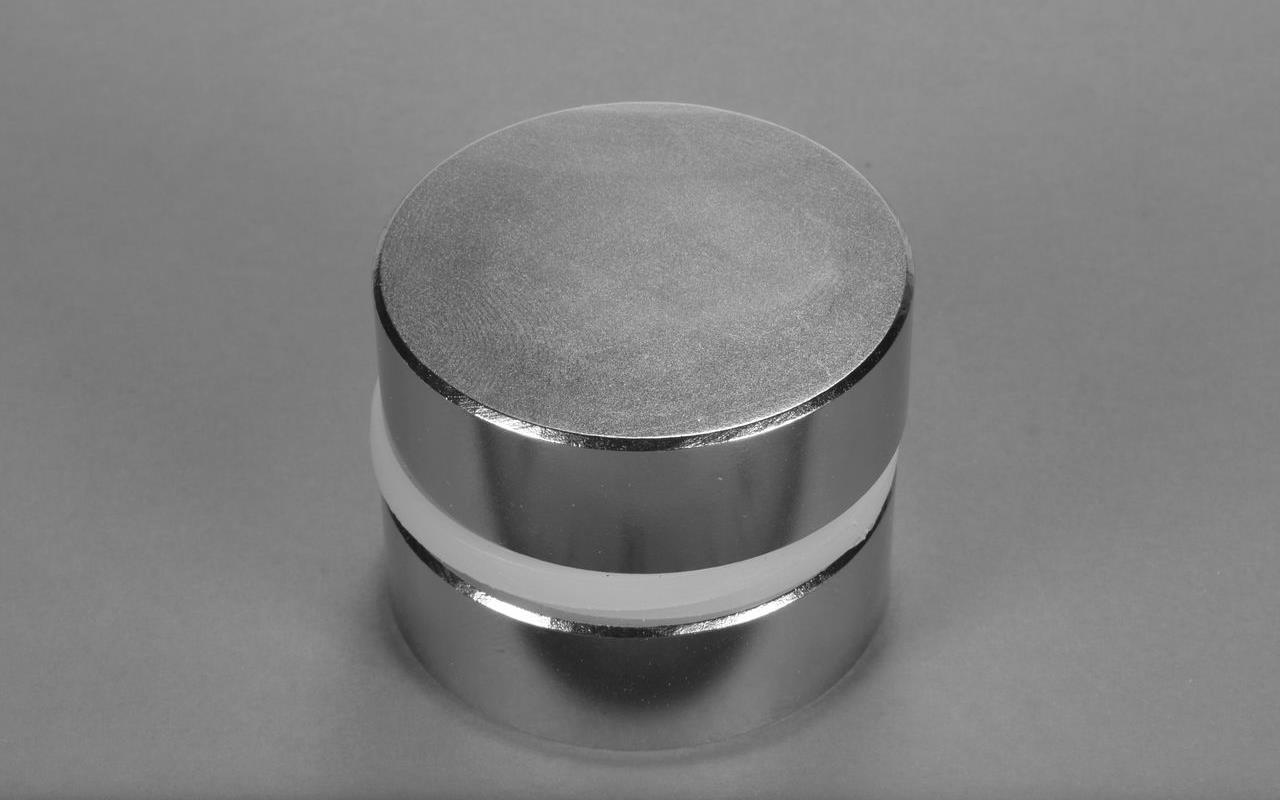

DX88 Neodymium Disc/Cylinder Magnets

EPI Product ID EPI-DX88
Dimensions 1 1/2″ dia. x 1/2″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 72.15 lbs

Description

Introducing the DX88, our high-strength disc magnet that demands your utmost respect. This formidable disc, when mishandled, can administer quite a pinch – a testament to its remarkable power. The exceptional strength of these discs lends them perfectly to heavy-duty holding, locating steel objects, and other applications requiring an immense magnetic force.

Safety is paramount when handling the DX88, so always treat it with care to fully harness its capabilities without any mishaps.

For those seeking an even higher level of magnetism, we offer the DX88 in the superior grade N52 variant, identified by part number DX88-N52. Whatever your magnetic needs, EPI Magnets has a solution tailored for you, balancing power, versatility, and safety.
