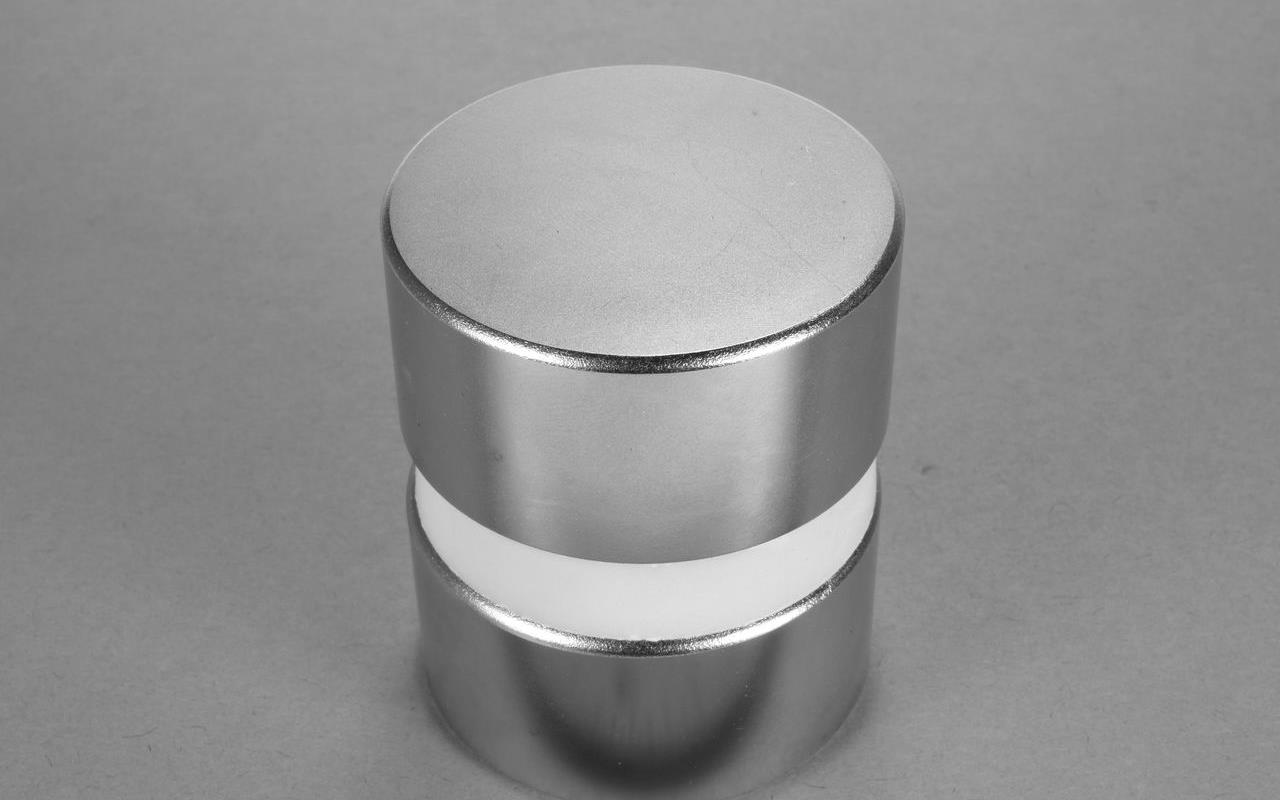

DY0X0 Neodymium Disc/Cylinder Magnets

EPI Product ID EPI-DY0X0
Dimensions 2″ dia. x 1″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 208.0 lbs

Description

The DY0X0 magnet is our most potent magnet, intended for applications requiring incredibly strong holding power. The sheer force of these neodymium magnets is nothing short of astounding, and they should be purchased only by those with significant experience handling large, powerful magnets. Attempting to separate two of these magnets by hand, once they’ve been stuck together, is virtually impossible.

Given the extreme strength of these magnets, we recommend that they be handled with the assistance of at least one other person. Care and respect must be exercised when handling these magnets, as they can cause severe physical harm, including pinching, crushing, or other injuries if not handled properly.

Before you decide to order these magnets, you must first read and understand our Neodymium Magnet Safety Page. This page includes critical information about how to safely handle, use, and store these magnets. You must also agree to our Terms and Conditions before purchasing. These precautions cannot be overstated – these magnets are EXTREMELY DANGEROUS!

This magnet is also available in grade N52, offering even more incredible strength, as part number DY0X0-N52. Regardless of which version you choose, remember to always exercise the utmost caution when handling these magnets due to their overwhelming power.
