| EPI Product ID | EPI-DY0Y0 |
|---|---|
| Dimensions | 2″ dia. x 2″ thick |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 305.0 lbs |

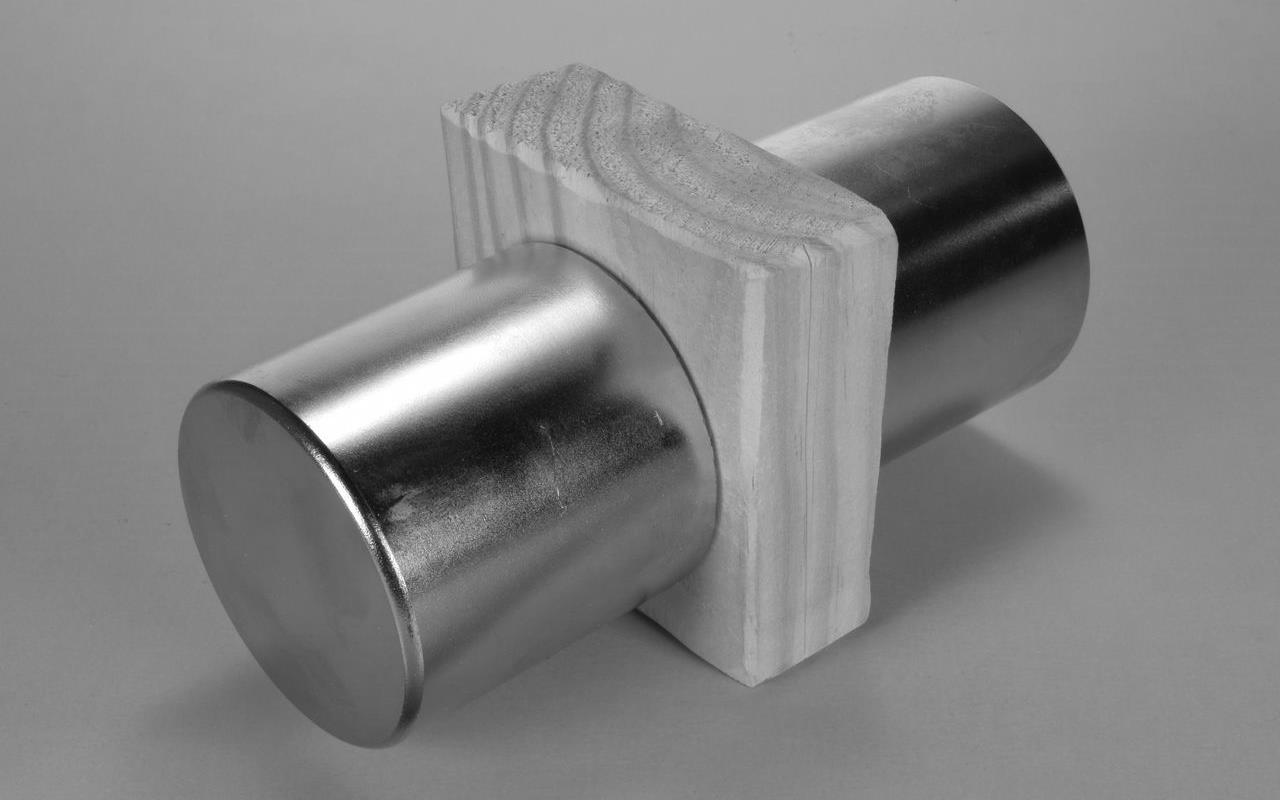

The DY0Y0 magnet ranks among the most potent magnets in our inventory. It is specifically designed for use in the most demanding holding applications. The power of these magnets is extraordinary, and we strongly recommend that they be purchased only by those familiar with the proper handling of large neodymium magnets. Once two of these magnets come together, it is virtually impossible to separate them manually.
Due to their exceptional magnetic strength, we suggest that they be handled with the help of at least one other person. Magnets of this magnitude can cause severe physical harm, including pinching and crushing, if they are not handled with utmost respect and care.
Before purchasing these magnets, you must read and comprehend the guidelines provided on our Neodymium Magnet Safety Page. Furthermore, you must agree to abide by our Terms and Conditions. We cannot overstate the importance of handling these magnets with extreme caution – THEY ARE HIGHLY DANGEROUS!
Note: Due to safety precautions, this item is eligible for GROUND SHIPPING ONLY.
This magnet size is also available in a stronger grade – the N52, under the part number DY0Y0-N52.
