MM-A-48 Neodymium Mounting Magnets

EPI Product ID EPI-MM-A-48

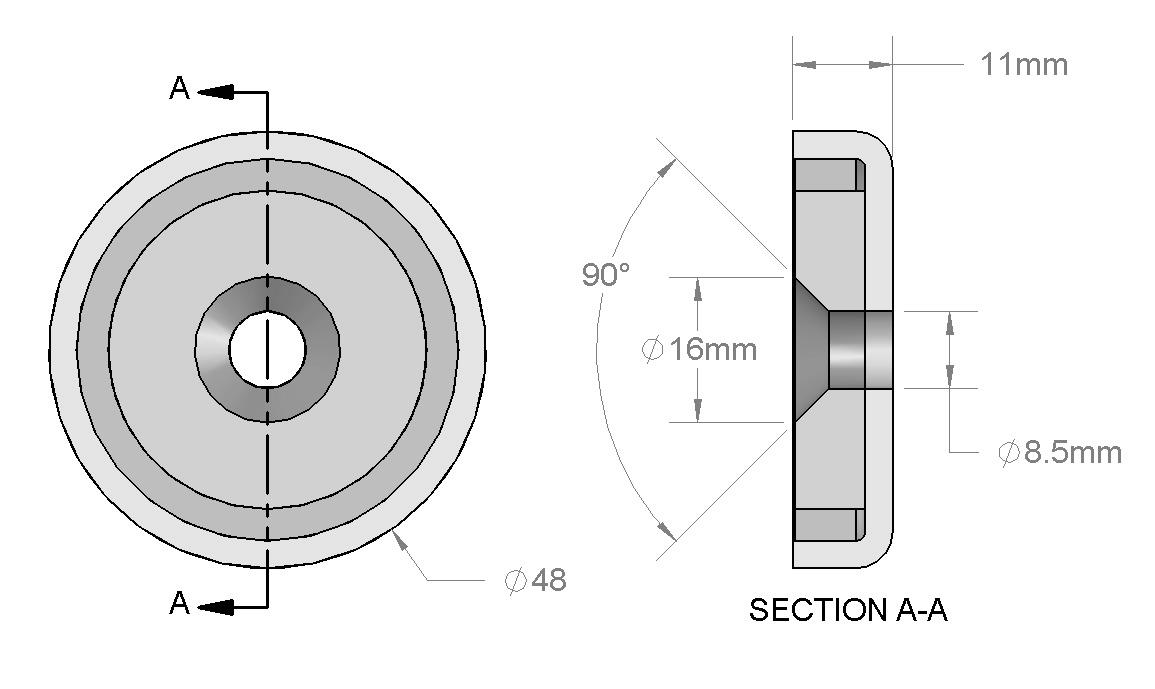

Dimensions D=48mm (1.89″) d1=8.5mm (0.33″) (Sized for M8 screw) d2=16mm (0.63″) (Tapered countersunk hole) h=11mm (0.43″)
Tolerances All ±0.004″
Grade N38
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 150.0 lbs

Description

The MM-A-48 is the next step up in the MM-A series, offering even greater strength and versatility due to its increased size. This flat mounting magnet is designed with precision to ensure a snug fit against a variety of surfaces, making it a prime choice for numerous applications.

The tapered hole in the MM-A-48 is specifically engineered to recess a screw head, providing a neat and professional finish. This design not only enhances the aesthetic appeal but also ensures that the magnet sits flush against the surface, maximizing its holding power.

One of the standout features of the MM-A-48 is its dual functionality. When attached to an object, it can be used to hang items on metallic surfaces, ideal for displaying larger signs, tools, or even artworks. Conversely, when the MM-A-48 is fixed to a wall, ceiling, or any other stationary structure, it serves as a robust anchor point for metallic objects, ensuring they remain securely in place.

Given its larger dimensions, the MM-A-48 is well-suited for tasks that require a more substantial holding force, making it a favorite choice for both home and industrial applications. Whether you’re organizing a workshop, displaying items in a store, or creating a magnetic wall feature at home, the MM-A-48 offers a reliable and elegant solution.

As always, when using the MM-A series magnets, it’s essential to ensure that the installation surface can support the weight of the attached item. Proper installation will not only maximize the magnet’s holding power but also ensure the safety and longevity of the setup.
