EPI Product ID | EPI-MM-A-60 |
---|---|

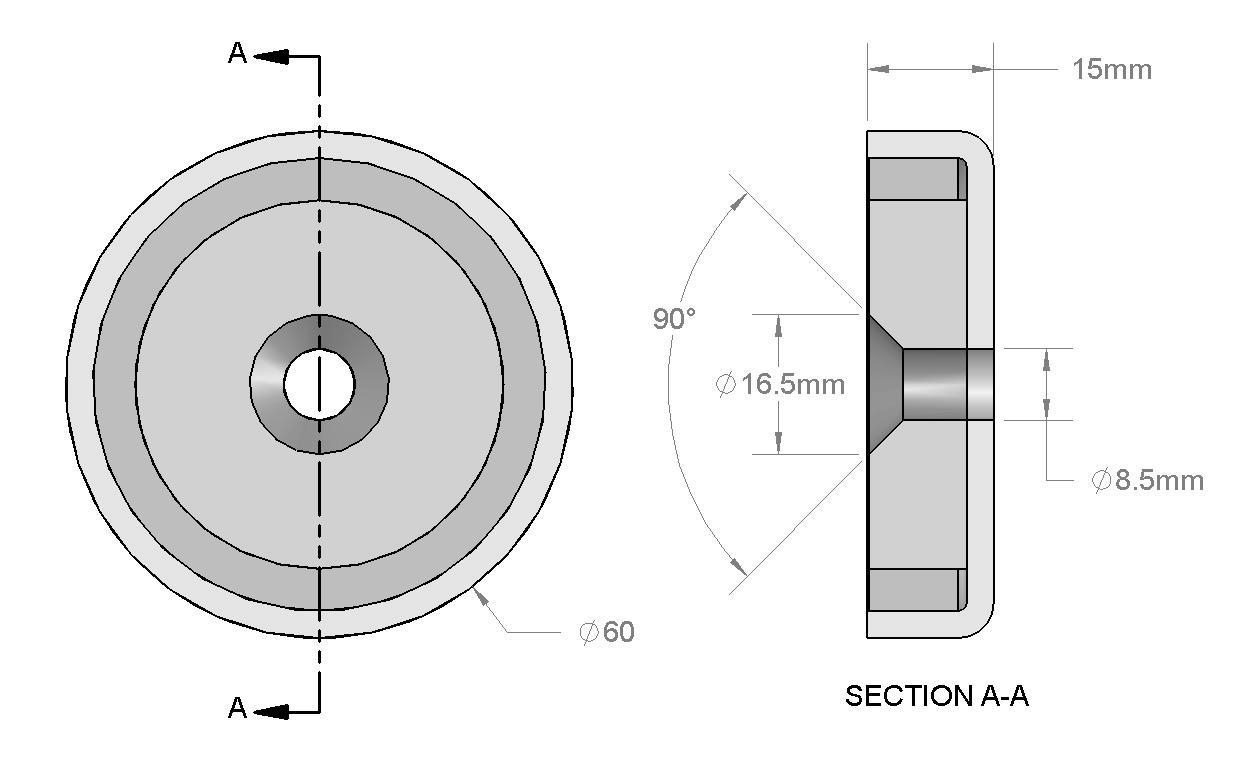

Dimensions | D=60mm (2.36″) d1=8.5mm (0.33″) (Sized for M8 screw) d2=16.5mm (0.65″) (Tapered countersunk hole) h=15mm (0.59″) |
Tolerances | All ±0.004″ |
Grade | N38 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 245.0 lbs |
The MM-A-60 is a part of the MM-A series, known for its robust design and versatility. With its increased size compared to its predecessors, the MM-A-60 offers even more strength and holding power, making it suitable for a broader range of applications.
Designed with a tapered hole, the MM-A-60 allows for a screw head to be recessed, ensuring a flush and seamless fit against any surface. This design not only provides a clean and professional appearance but also enhances the magnet’s efficiency by ensuring maximum contact with the surface.
The dual-purpose nature of the MM-A-60 is one of its standout features. When attached to an object, it can serve as a reliable hanging mechanism on metallic surfaces. This is ideal for heavier items that need a strong hold, such as large signs, tools, or equipment. On the other hand, when the MM-A-60 is affixed to a stationary structure like a wall or ceiling, it acts as a sturdy anchor point, holding metallic objects securely.
Given its enhanced dimensions, the MM-A-60 is perfect for tasks that demand a higher holding force. This makes it a preferred choice for both residential and commercial settings, from organizing a garage or workshop to setting up displays in retail spaces.
When using the MM-A-60, it’s crucial to ensure that the installation surface is capable of supporting the weight of the attached item. Proper installation guarantees that the magnet operates at its full potential and ensures the safety and durability of the setup. Whether you’re looking to optimize space, create a unique display, or simply need a reliable holding solution, the MM-A-60 is up to the task.
