EPI Product ID | EPI-MM-A-75 |
---|---|

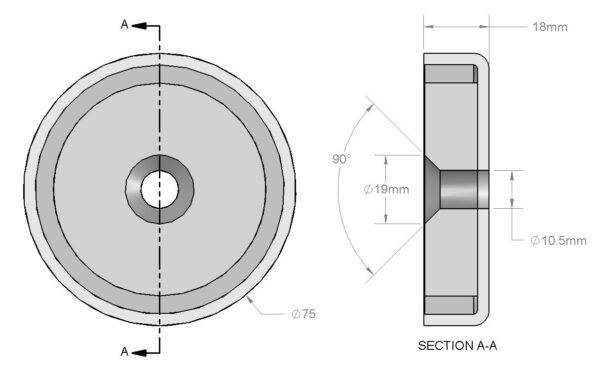

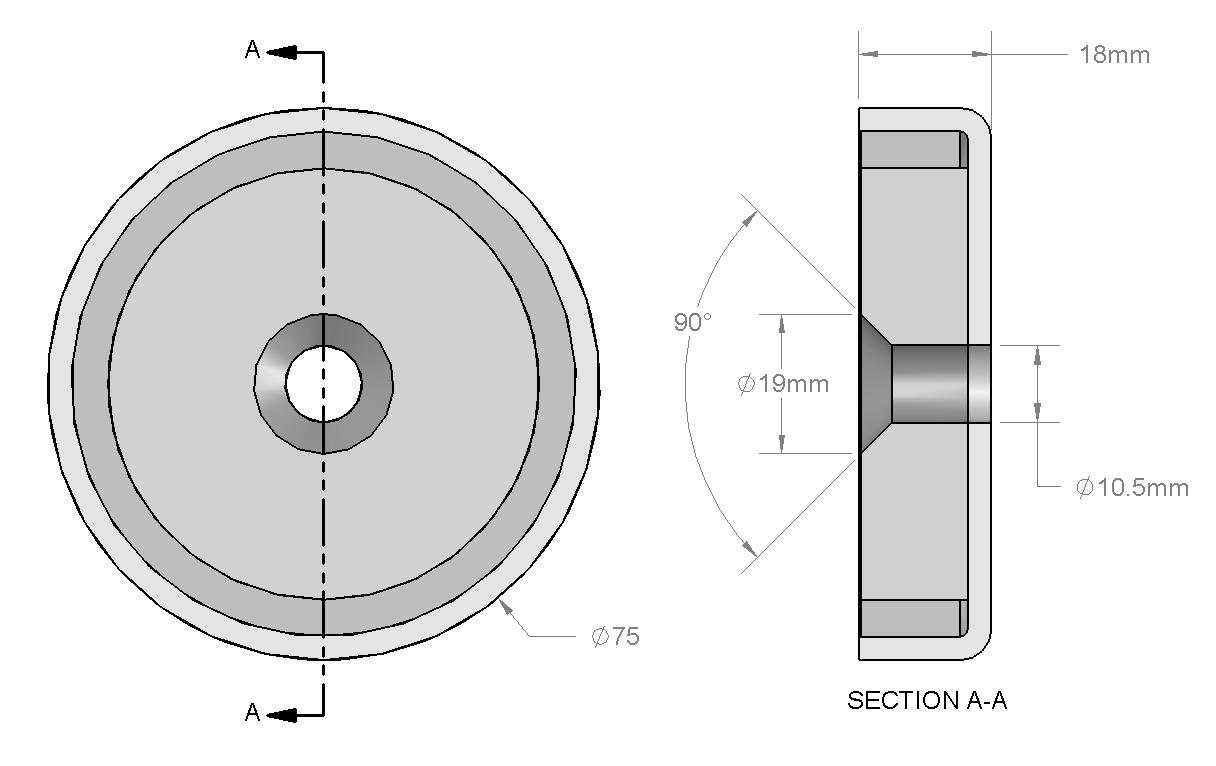

Dimensions | D=75mm (2.95″) d1=10.5mm (0.41″) (Sized for M10 screw) d2=19mm (0.75″) (Tapered countersunk hole) h=18mm (0.71″) |
Tolerances | All ±0.004″ |
Grade | N38 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 357 lbs |
The MM-A-75 is an extension of the renowned MM-A series, known for its practical design and multifunctional use. With its larger dimensions, the MM-A-75 offers superior strength and holding capabilities, making it suitable for even more demanding applications.
Featuring a tapered hole, the MM-A-75 is designed to accommodate a screw head, allowing it to sit flush against any surface. This design not only ensures a neat and polished appearance but also maximizes the magnet’s efficiency by ensuring optimal contact with the surface.
The MM-A-75’s dual-functionality is one of its most notable attributes. When affixed to an object, it can act as a robust hanging mechanism on metal surfaces. This is particularly useful for heavier items that require a strong and reliable hold, such as large tools, equipment, or signage. Conversely, when the MM-A-75 is mounted to a fixed structure, like a wall or ceiling, it serves as a solid anchor point, securely holding metallic objects.
Given its increased size, the MM-A-75 is ideal for tasks that require a higher degree of holding force. This makes it a top choice for both domestic and commercial environments, whether it’s for organizing a workshop, setting up retail displays, or any other application that demands a sturdy holding solution.
When utilizing the MM-A-75, it’s essential to ensure that the mounting surface can support the weight of the attached item. Proper installation ensures that the magnet functions at its best and guarantees the longevity and safety of the setup. If you’re in search of a reliable, strong, and versatile mounting solution, the MM-A-75 is an excellent choice.
