| EPI Product ID | EPI-MM-B-16 |
|---|---|

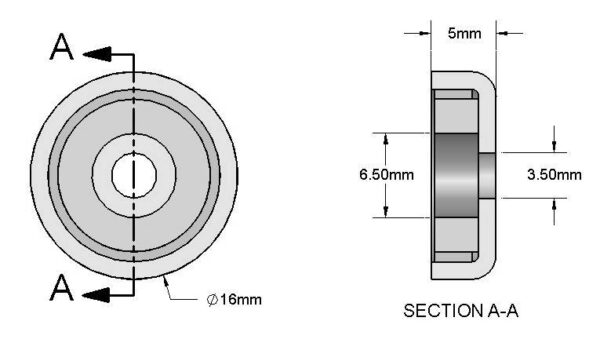

| Dimensions | D=16mm (0.63″) d1=3.5mm (0.14″) (Sized for M3 screw) d2=6.5mm (0.26″) (Straight counterbored hole) h=5mm (0.20″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 8.80 lbs |
The MM-B design is a sleek, flat-profile magnet equipped with a straight-through hole, tailored to accommodate screw or bolt heads. Ideal for projects requiring a magnet to be firmly anchored, these mounting magnets ensure stability and precision.
