| EPI Product ID | EPI-MM-B-20 |
|---|---|

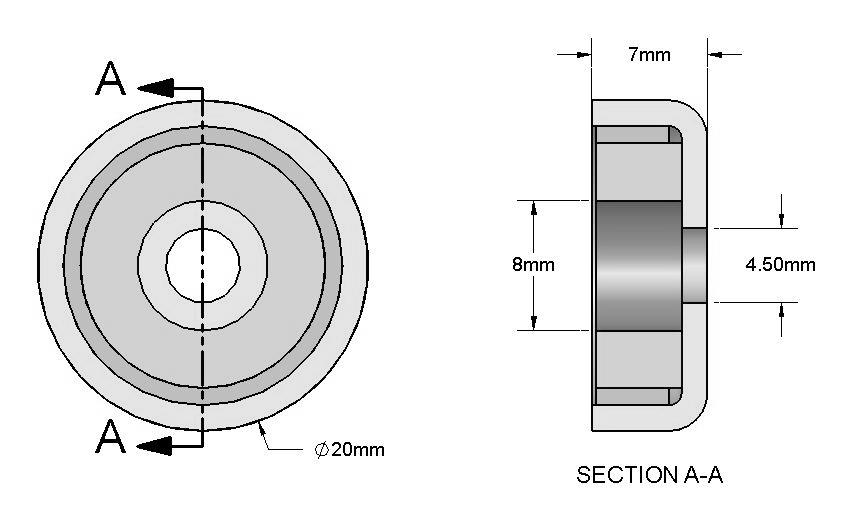

| Dimensions | D=20mm (0.79″) d1=4.5mm (0.18″) (Sized for M4 screw) d2=8.5mm (0.33″) (Straight counterbored hole) h=7mm (0.28″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 13.2 lbs |
The MM-B variant boasts a streamlined, flat design, featuring a direct-through hole designed for the seamless integration of screw or bolt heads. For projects demanding a steadfast magnetic attachment, these mounting magnets are the go-to choice for reliability and strength.
