| EPI Product ID | EPI-MM-B-36 |
|---|---|

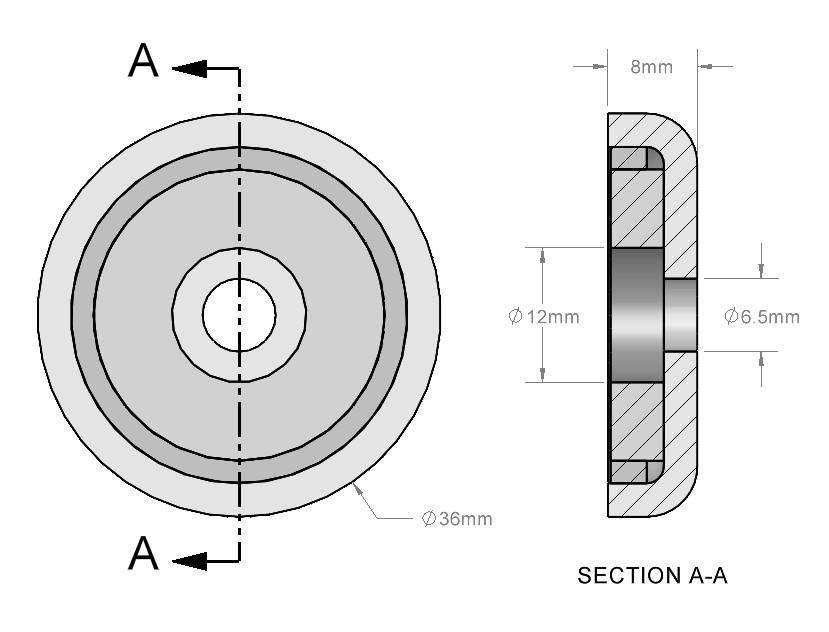

| Dimensions | D=36mm (1.42″) d1=6.5mm (0.26″) (Sized for M6 screw) d2=12mm (0.472″) (Straight counterbored hole) h=8mm (0.31″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 59.5 lbs |
The MM-B series introduces a streamlined, flat-profile magnet, complete with a straight-through hole tailored for the discreet placement of screw or bolt heads. When your endeavor requires a steadfast magnetic connection, these mounting magnets emerge as the gold standard in durability and efficiency.
