| EPI Product ID | EPI-MM-B-48 |
|---|---|

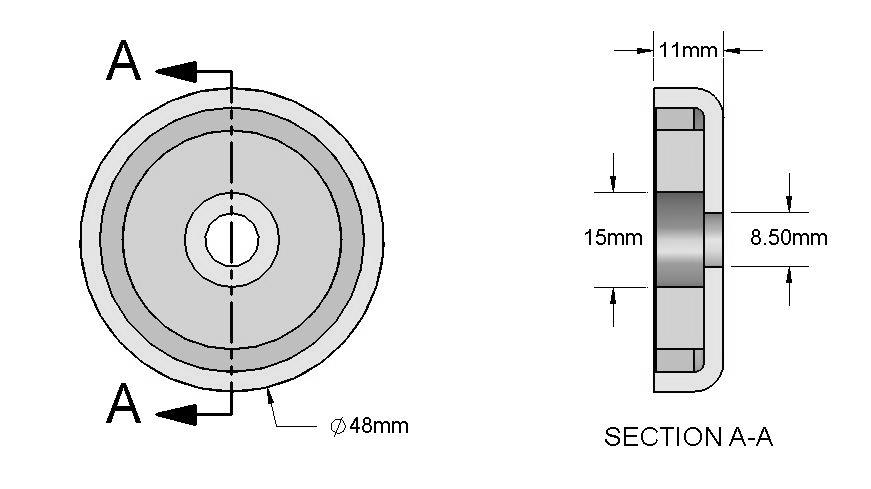

| Dimensions | D=48mm (1.89″) d1=8.5mm (0.33″) (Sized for M8 screw) d2=15mm (0.59″) (Straight counterbored hole) h=11mm (0.43″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 139.0 lbs |
Embracing the MM-B architecture, this polished, flat-profile magnet features a straight-through hole, masterfully engineered for the integration of screw or bolt heads. For tasks that require a steadfast magnetic grip, these mounting magnets represent the pinnacle of durability and exactness.
