| EPI Product ID | EPI-MM-C-10 |
|---|---|

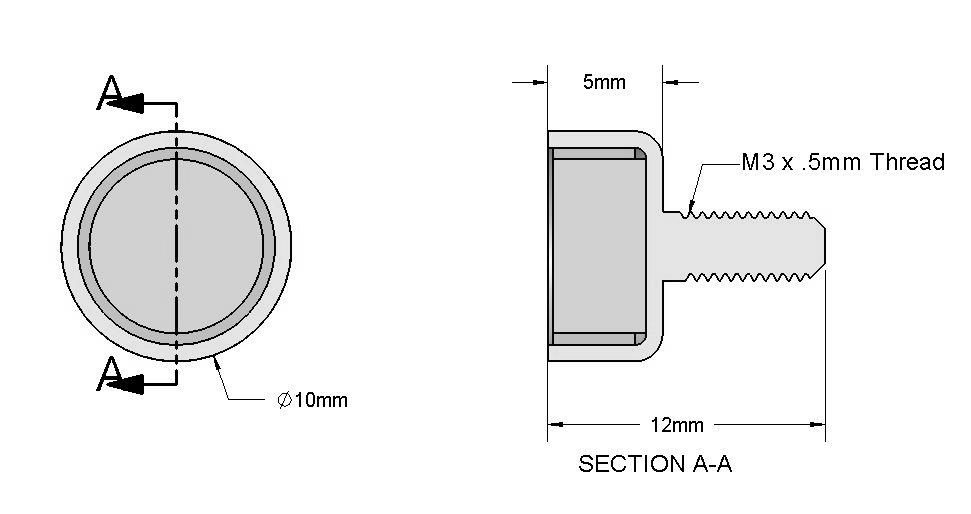

| Dimensions | D=10mm (0.39″) M=3mm (0.12″) (M3 Coarse Male threaded stud) H=12mm (0.47″) h=5mm (0.20″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 4.9 lbs |
The MM-C variant is a flat-profile mounting magnet, seamlessly integrated with a permanent male stud. It’s ideally suited for insertion through a hole and secured with a nut, making it the prime choice for hardware assembly attachments.
