| EPI Product ID | EPI-MM-C-16 |
|---|---|

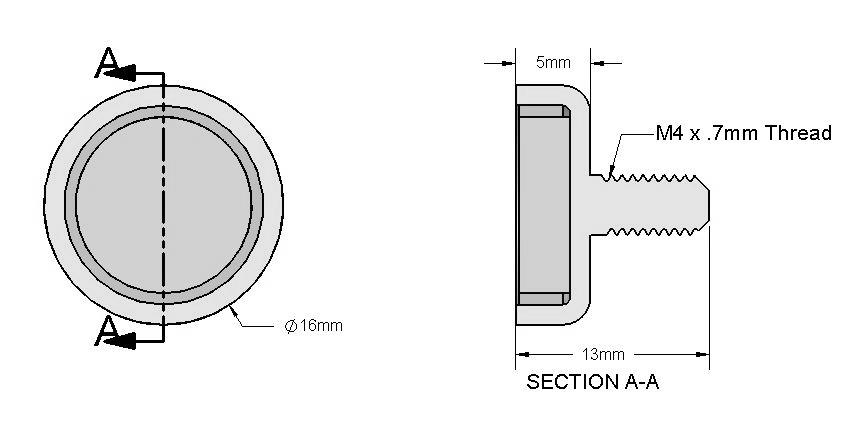

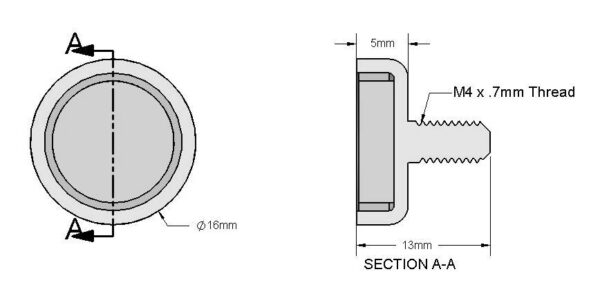

| Dimensions | D=16mm (0.63″) M=4mm (0.16″) (M4 Coarse Male threaded stud) H=13mm (0.51″) h=5mm (0.20″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 12.1 lbs |
The MM-C model showcases a flat-profile mounting magnet, impeccably combined with a sturdy male stud. Precision-engineered for insertion through a hole and fastening with a nut, it emerges as the top pick for securing hardware components.
