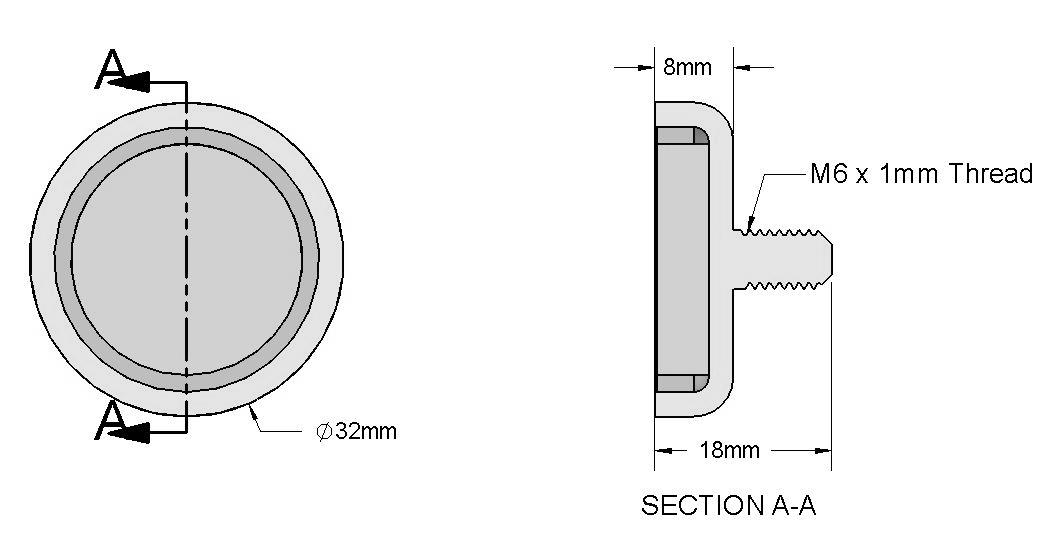

| EPI Product ID | EPI-MM-C-32 |
|---|---|
| Dimensions | D=32mm (1.26″) M=6mm (0.24″) (M6 Coarse Male threaded stud) H=18mm (0.71″) h=8mm (0.32″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 75.0 lbs |
The MM-C rendition is a flat-profile mounting magnet, endowed with a permanently affixed male stud. Exquisitely designed for threading through a hole and securing with a nut, it’s the quintessential solution for solid hardware assembly integration.
