| EPI Product ID | EPI-MM-C-36 |
|---|---|

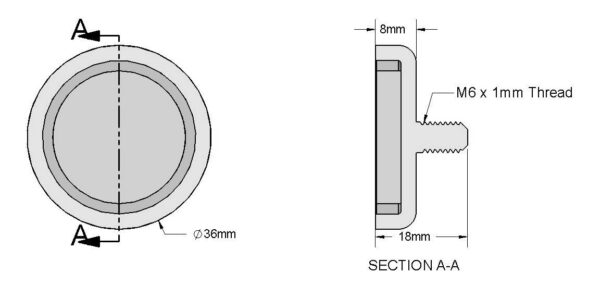

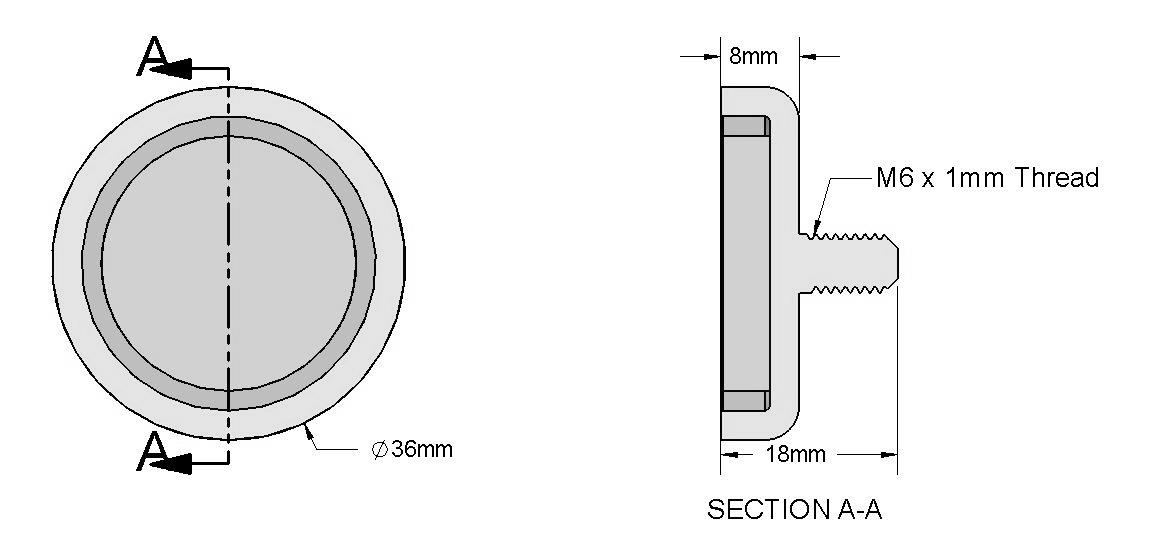

| Dimensions | D=36mm (1.42″) M=6mm (0.24″) (M6 Coarse Male threaded stud) H=18mm (0.71″) h=8mm (0.31″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 90.4 lbs |
The MM-C version boasts a flat-shaped mounting magnet, complemented by a permanently embedded male stud. Tailored for passage through a hole and anchoring with a nut, it’s the optimal choice for steadfast hardware assembly connections.
