| EPI Product ID | EPI-MM-C-60 |
|---|---|

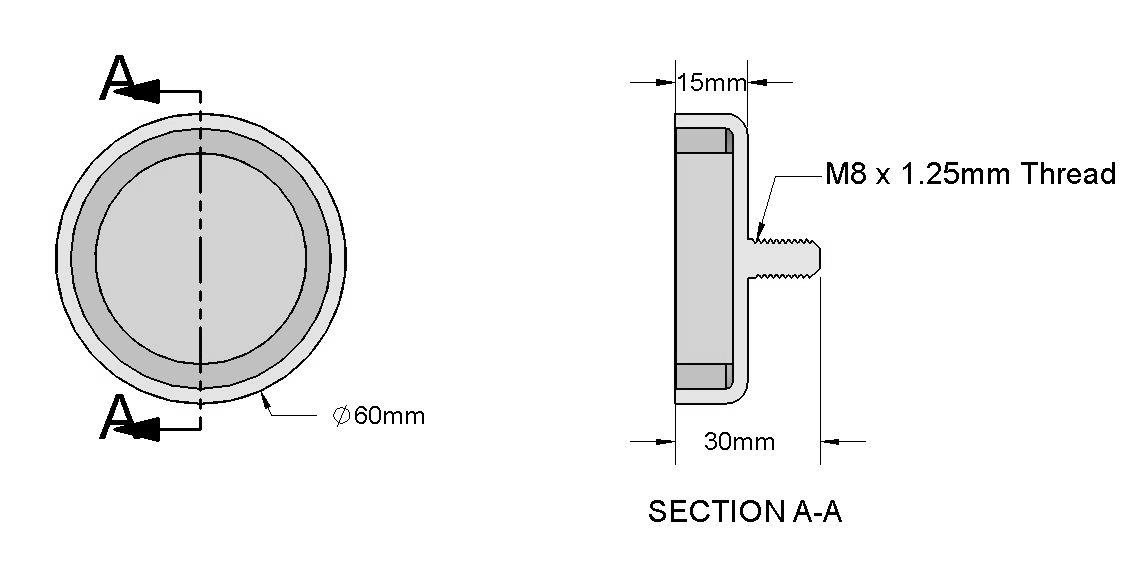

| Dimensions | D=60mm (2.36″) M=8mm (0.32″) (M8 Coarse Male threaded stud) H=30mm (1.18″) h=15mm (0.59″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 249.1 lbs |
The MM-C design, distinguished by its flat-profile, incorporates a male stud firmly fixed to the mount. Precision-made for sliding through a hole and tightening with a nut, it’s the premier option for robust hardware assembly integrations.
