| EPI Product ID | EPI-MM-C-75 |
|---|---|

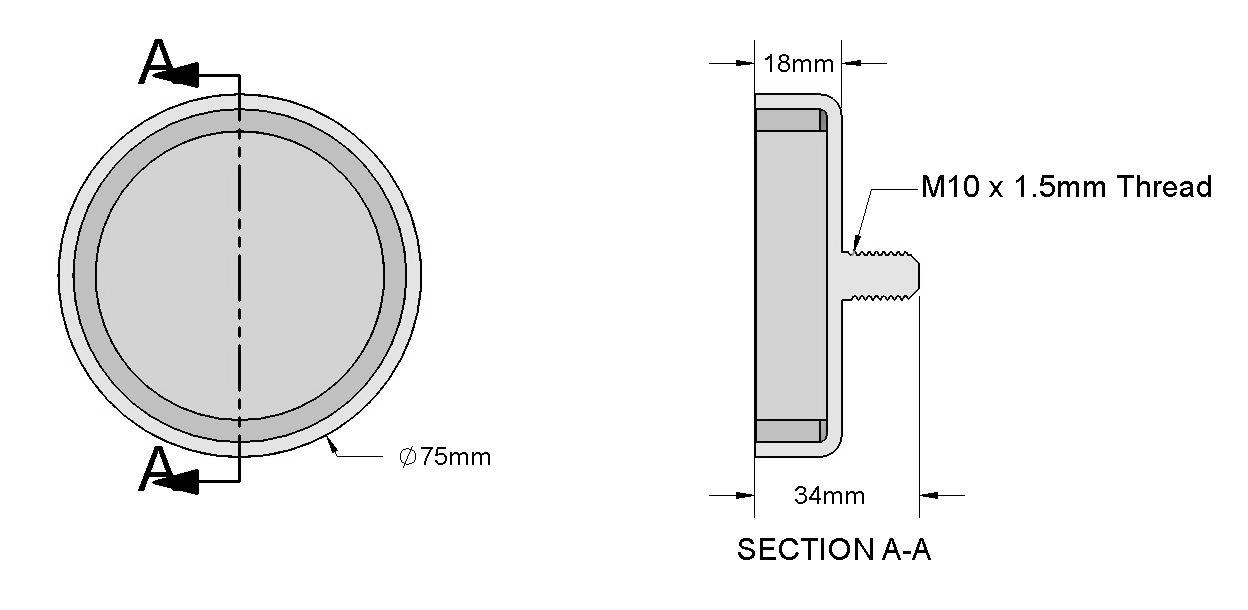

| Dimensions | D=75mm (2.95″) M=10mm (0.39″) (M10 Coarse Male threaded stud) H=34mm (1.34″) h=18mm (0.71″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 361.6 lbs |
The MM-C rendition, marked by its flat silhouette, is equipped with a male stud unyieldingly bonded to the mount. Expertly tailored for insertion through a hole and clinching with a nut, it’s the apex choice for solidifying hardware assembly connections.
