MM-D-16 Neodymium Mounting Magnets

EPI Product ID EPI-MM-D-16

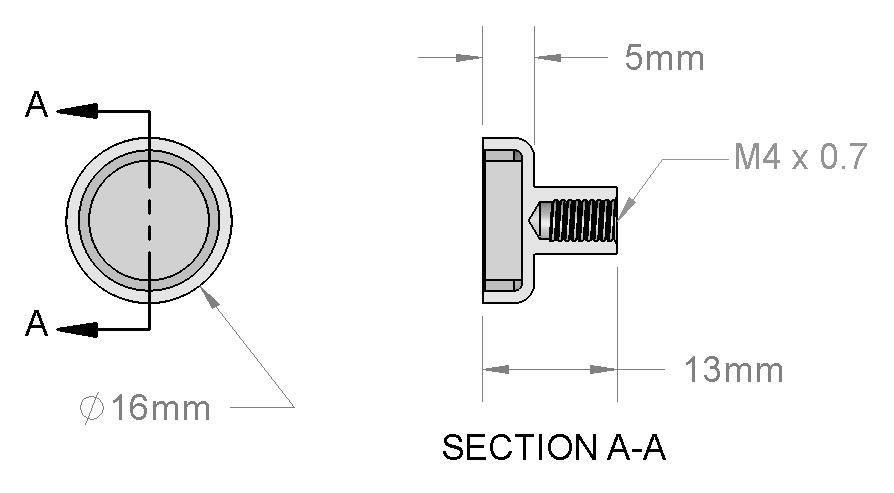

Dimensions D=16mm (0.63″) d=4mm (0.16″) (M4 Coarse Female threaded stud) H=13mm (0.51″) h=5mm (0.20″) M=6mm (0.24″)
Tolerances All ±0.004″
Grade N38
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 12.1 lbs

Description

The MM-D model, characterized by its flat-profile, comes equipped with a steadfast female threaded shaft. Harnessing the unparalleled strength of neodymium, this magnet offers an impeccable bond when interfaced with threaded components. Perfect for intricate assemblies or everyday applications, the MM-D-16 delivers a secure and lasting connection. When your project demands a threaded magnetic union, the MM-D-16 stands as the epitome of precision and reliability. Dive into the world of robust magnetic solutions with this exceptional design.
