| EPI Product ID | EPI-MM-D-48 |
|---|---|

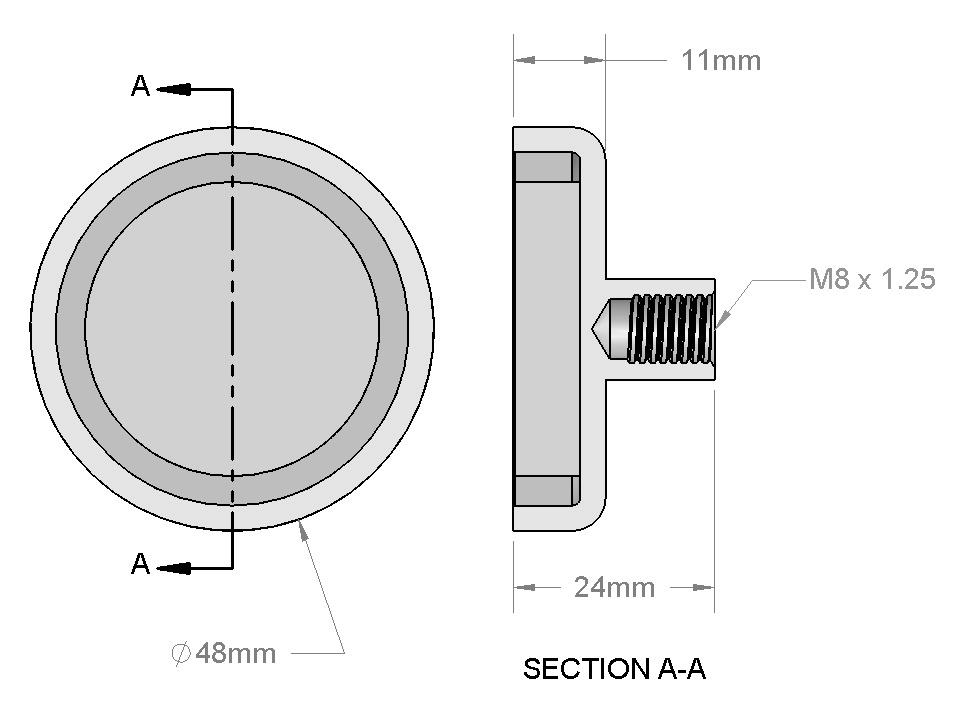

| Dimensions | D=48mm (1.89″) d=8mm (0.31″) (M8 Coarse Female threaded stud) H=24mm (0.94″) h=11mm (0.43″) M=12mm (0.47″) |
| Tolerances | All ±0.004″ |
| Grade | N38 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 178.6 lbs |
The MM-D rendition, with its elegant flat profile, seamlessly integrates a robust female threaded shaft that’s anchored with precision. Utilizing the unmatched capabilities of neodymium, this magnet ensures a formidable linkage when aligned with threaded counterparts. Be it for intricate assembly work or standard applications, the MM-D-48 shines with its impeccable design and steadfast connection. For scenarios demanding a magnetic attachment with threaded synergy, the MM-D-48 stands out as a beacon of excellence and functionality. Embrace the fusion of strength and design with this specialized magnet.
