MM-D-75 Neodymium Mounting Magnets

EPI Product ID EPI-MM-D-75

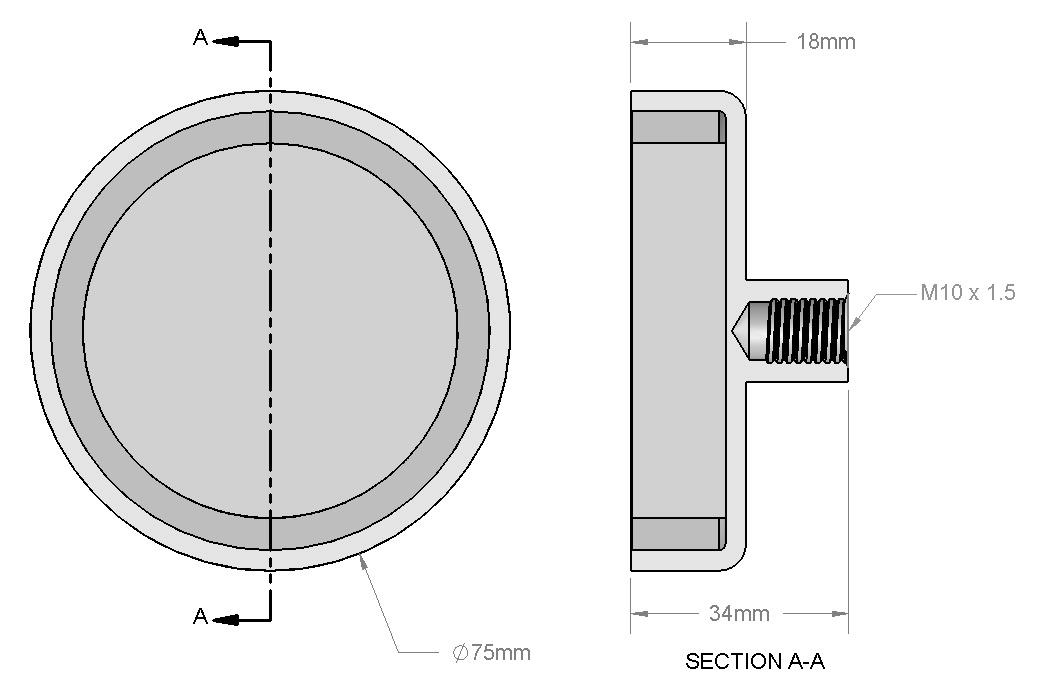

Dimensions D=75mm (2.95″) d=10mm (0.39″) (M10 Coarse Female threaded stud) H=34mm (1.34″) h=18mm (0.71″) M=16mm (0.63″)
Tolerances All ±0.004″
Grade N38
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 361.6 lbs

Description

The MM-D configuration, defined by its sophisticated flat architecture, boasts a resilient female threaded shaft that’s anchored with utmost precision. Leveraging the formidable essence of neodymium, this magnet establishes an unwavering connection when paired with threaded structures. Suited for both complex engineering solutions and routine mounting scenarios, the MM-D-75 exemplifies unmatched stability and refined engineering. When projects call for a magnetic bond with threaded specificity, the MM-D-75 stands as the gold standard, marrying sheer strength with intricate design. Delve into the realm of superior magnetic connectivity with this exceptional variant.
