MMR-A-ZC Neodymium Mounting Magnets

EPI Product ID EPI-MMR-A-ZC

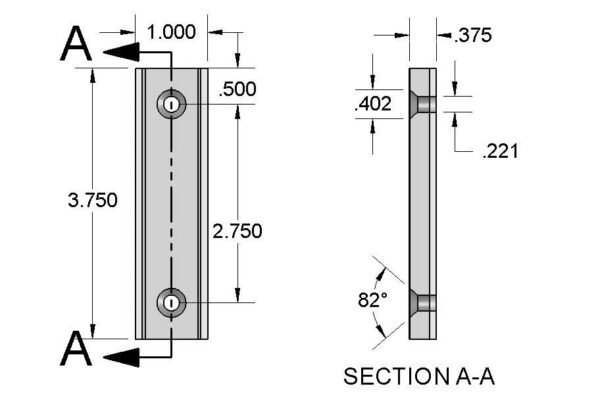

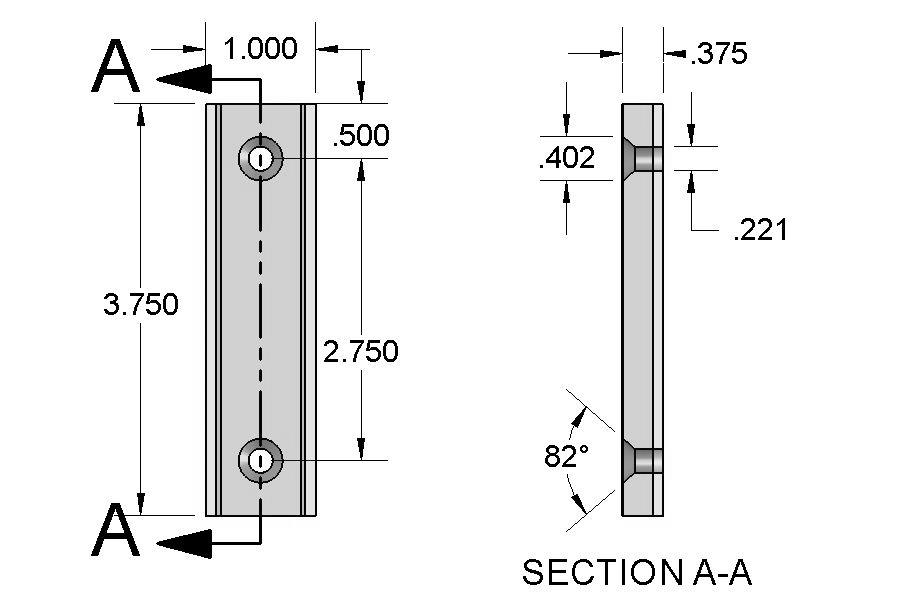

Dimensions Length= 3 3/4″ (3.75″) Width= 1″ (1.00″) Height= 3/8″ (0.375″) Holes sized for #10 flat-head screws
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Thru Thickness
Pull Force 151.8 lbs

Description

Introducing the MMR-A-ZC, a state-of-the-art Neodymium Mounting Magnet, distinguished by its signature rectangular or bar shape. As the latest innovation in our mounting magnet collection, it’s a unique piece you’ll only find with us!

Featuring two tapered holes, it’s designed to perfection, allowing screw heads to sit flush for a sleek finish. This magnet is the epitome of adaptability: whether you aim to hang items on metallic surfaces or secure metallic objects to walls, ceilings, or fixtures, it’s impeccably suited for the job. Its diverse functionality makes it an indispensable addition to any toolkit. Embrace the unparalleled efficiency and design of the MMR-A-ZC!
