MMS-B-C Neodymium Mounting Magnets

EPI Product ID EPI-MMS-B-C

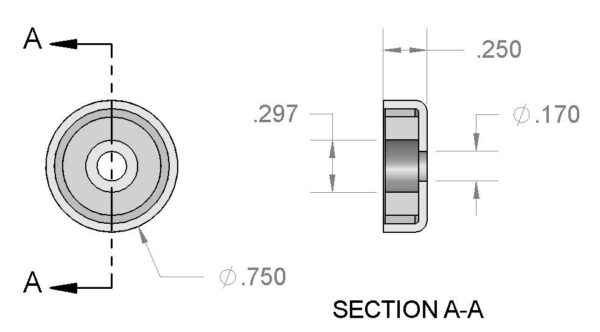

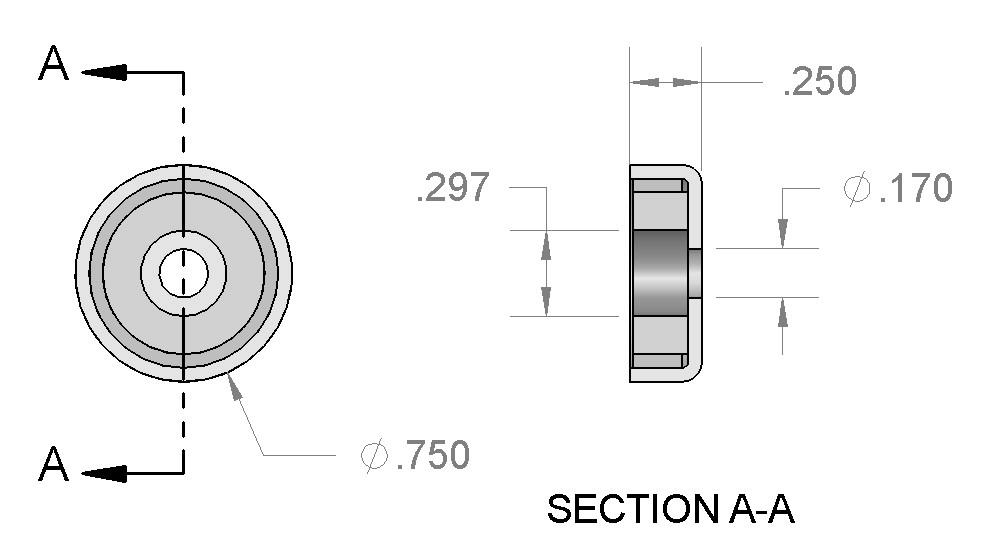

Dimensions Diameter = 3/4″ (0.75″) Hole Size = #6 Screw Height = 1/4″ (0.25″)
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 16.25 lbs

Description

Presenting the MMS-B-C, a skillfully crafted flat mounting magnet, distinguished by its straight hole designed to perfectly recess a screw or bolt head. This magnet stands as a beacon of utility: whenever there’s a need for a steadfast magnetic attachment in your project, it’s your go-to solution. Its sleek design, paired with its robust anchoring capabilities, positions it as a must-have for any project that demands a reliable magnetic connection. Harness the power and precision of the MMS-B-C for all your mounting needs!
