EPI Product ID | EPI-MMS-C-X0 |
---|---|

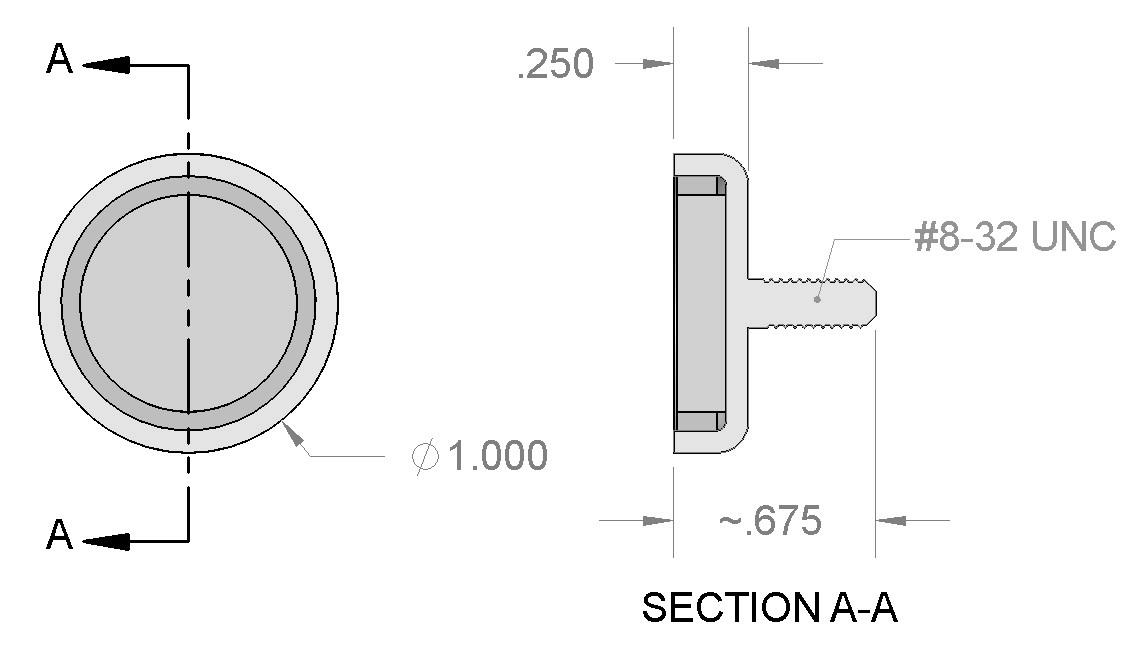

Dimensions | Diameter = 1″ (1.00″) Threaded Male Stud = #8-32 UNC 2A Height = 1/4″ (0.250″) |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 40.64 lbs |
Presenting the MMS-C-X0, an elegantly constructed flat mounting magnet, featuring a robust male stud that’s permanently affixed to the mount. This magnet epitomizes practicality: designed for effortless insertion through a hole and secured with a nut, it stands as the go-to choice for hardware assembly attachments. Its streamlined profile, combined with its anchoring strength, positions it as a pivotal component for any assembly requiring a steadfast magnetic bond. Elevate your assembly process with the unmatched utility of the MMS-C-X0!
