EPI Product ID | EPI-MMS-C-X8 |
---|---|

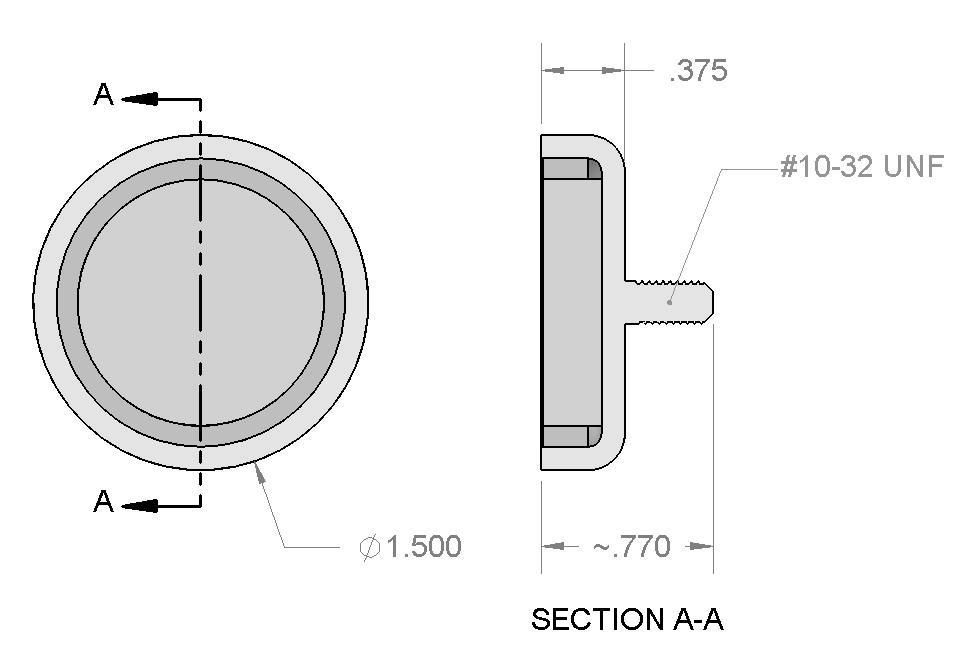

Dimensions | Diameter = 1 1/2″ (1.50″) Threaded Male Stud = #10-32 UNF 2A Height = 3/8″ (0.375″) |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 95.78 lbs |
Showcasing the MMS-C-X8, a masterfully designed flat mounting magnet, seamlessly fused with a sturdy male stud that’s permanently set into the mount. This magnet stands as a paragon of utility: meticulously crafted for direct insertion through a hole and tightened with a nut, it emerges as the top pick for efficient hardware assembly attachments. Its refined aesthetics, combined with its robust anchoring strength, position it as a cornerstone for projects requiring a solid magnetic bond. Step up your assembly game with the unparalleled prowess of the MMS-C-X8!
